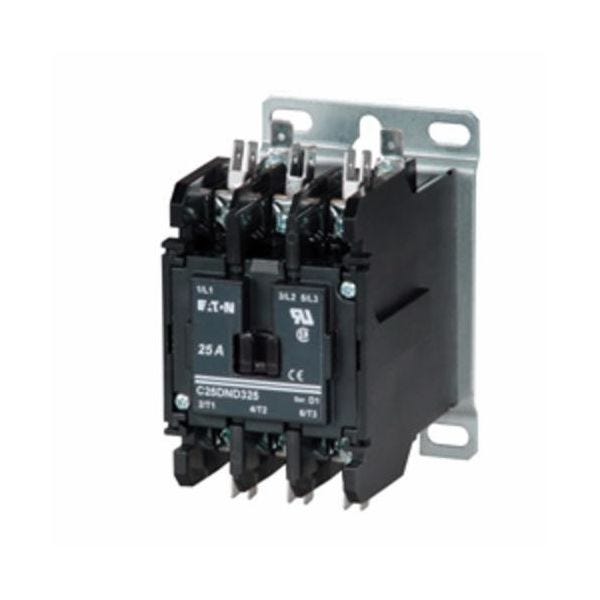

EATON Definite Purpose Control Contactor, Non-Reversing, 208 to 240 VAC Coil, 30 A Inductive/40 A Resistive Maximum Load Current, 2 Pole, 50/60 Hz, Quick-Joint, Pressure Plate/Quick-Connect/Screw Terminal, Open with Metal Mounting Plate, 3.35 in L x 2.4 in W x 3.75 in H
- Completely encased design impervious to dust and other environmental elements
- 1, 2, 3 and 4-pole configurations
- Open components and enclosed designs
- 40 A resistive load
| Coil Voltage | 208 to 240 VAC |
|---|---|
| Frequency Rating | 50/60 Hz |
| Type | Non-Reversing |
| Connection Type | Quick-Joint |
| Dimensions | 3.35 in L x 2.4 in W x 3.75 in H |
| Terminal Type | Pressure Plate/Quick-Connect/Screw |
| Number of Poles | 2 |
| Enclosure Type | Open with Metal Mounting Plate |
| Maximum Load Current | 30 A Inductive/40 A Resistive |
| Brand | Eaton |
