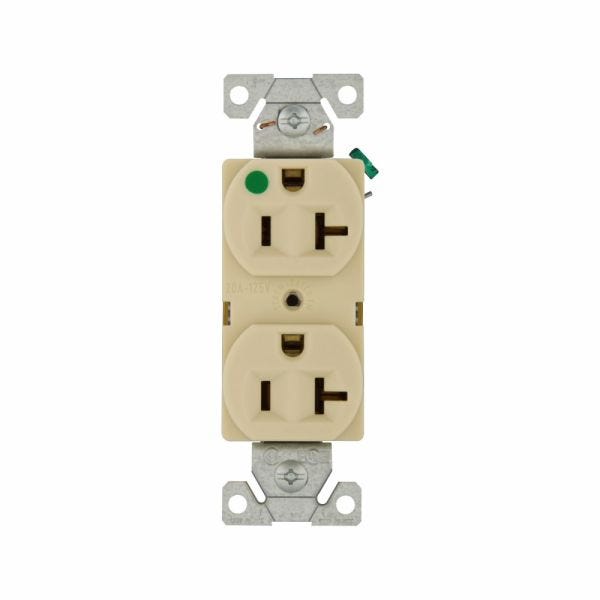

EATON 8300V
20A 125V HOSPITAL GRD REC
SKU
676544
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Single, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Hospital Grade, -20 to 90 deg C, Screw Terminal, Nylon, Ivory, 4.19 in H x 1.3 in W x 0.88 in D Dimensions
- Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- All terminal and mounting screws Triple-combination (slot/Phillips®/Robertson) head for maximum installer flexibility
- Screw catch feature on duplex devices speeds mounting of wallplates
- Nylon insulation
- Wall mount
- 14 to 10 AWG wire terminal
| Dimensions | 4.19 in H x 1.3 in W x 0.88 in D |
|---|---|
| Amperage Rating | 20 A |
| Color | Ivory |
| Grade | Industrial/Hospital |
| Voltage Rating | 125 VAC |
| Number of Wires | 3 |
| Material | Nylon |
| Temperature Rating | -20 to 90 deg C |
| Number of Poles | 2 |
| Type | Single |
| NEMA Rating | NEMA 5-20R |
| Terminal Type | Screw |
| Brand | Eaton |
| Color | Ivory |
| Voltage | 125V |
| Type | Hospital Grade |
| Amperage | 20A |
| Number | Single |
