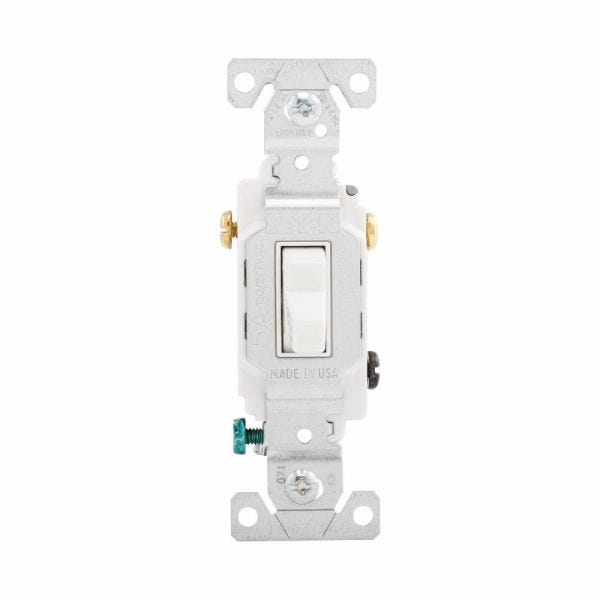

EATON CS315W
CS315W COMM 3W 15A SWITCH
SKU
699836
EATON Arrow Hart AC Toggle Switch, 3-Way Heavy Duty Specification Grade, Series: CS Series, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Compact Toggle Actuator, Wall Mounting, Side Wire/Screw Terminal, 50000 Cycles Operating Cycles, PVC, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 1.13 in W x 0.87 in D Dimensions
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws ease installation
- Color-coded strap marking identifies amperage
- 14 to 10 AWG terminal
- Nylon toggle
- 2.38 in L back
- 3.28 in L screw to screw
| Dimensions | 1.13 in W x 0.87 in D |
|---|---|
| Power Rating | 1/2 hp, 2 hp |
| Voltage Rating | 120/277 V |
| Operating Cycles | 50000 Cycles |
| Series | CS Series |
| Mounting | Wall |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Contact Rating | 15 A at 120/277 VAC |
| Color | White |
| Type | 3-Way Heavy Duty Specification Grade |
| Number of Poles | 1 |
| Material | PVC |
| Terminal Type | Side Wire/Screw |
| Amperage Rating | 15 A |
| Actuator | Compact Toggle |
| Brand | Eaton |
| Amperage | 15 Amp |
| Voltage | 120/277V |
