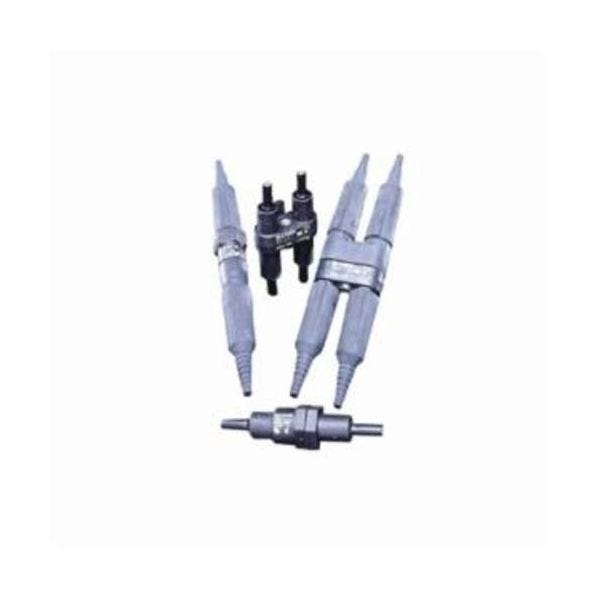

Mersen FEC-11-11
1P NEUTRAL INLINE FUSEHOLDER
SKU
724498
Mersen In-Line Fuse Holder, Series: FEC, 600 VAC, 30 A, 1 Poles, 1 Phase, Class: CC, Crimped, 12 to 8 AWG Wire, In-Line Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 155 deg C, For Use With: ATDR, ATMR and ATQR Series Class CC Fuse, Polyethylene, 4.3 in L
- Breakaway version quickly disconnects line side during pole knockdown in compliance with state and federal highway commission standards
- 3 O-rings per pole for watertight applications
- Colored O-rings for quick detection
- Single and dual poles
- Accepts midget or class CC fuses
- Wide assortment of terminal variations
- High heat, impact resistant insulator
- Captive nut or screw for quick installations
- Polarized dual pole provides simultaneous disconnection
- Permanently installed neutral versions quickly identified by white nuts
- Environmentally friendly no-lead solder used
- Highly visible catalog number even with insulation boots installed
- Wire gauge size identified on insulation boots for quick, accurate trimming
- Copper terminal
- (1) 12 - 8 AWG and (2) 14 - 12 AWG line/load wire size
| Dimensions | 4.3 in L |
|---|---|
| Wire Size | 12 to 8 AWG |
| Number of Poles | 1 |
| Amperage Rating | 30 A |
| Mounting Type | In-Line |
| Material | Polyethylene |
| Suitable For Use With | ATDR, ATMR and ATQR Series Class CC Fuse |
| Voltage Rating | 600 VAC |
| Fuse Diameter | 13/32 in |
| Temperature Rating | 155 deg C |
| Number of Phases | 1 |
| Connection Type | Crimped |
| Class | CC |
| Series | FEC |
| Fuse Length | 1-1/2 in |
| Brand | Merson Fuses |
