Mersen A4J200
200A 600V FUSE CLASS J
SKU
794843

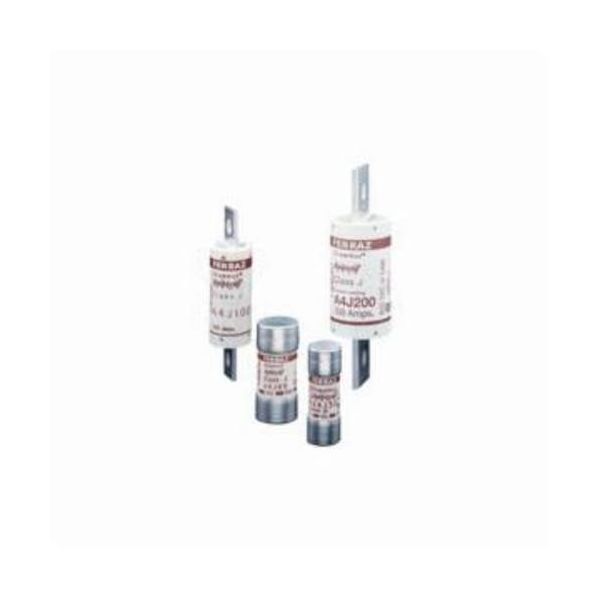

Mersen Amp-Trap® Fast Acting Fuse, Current Limiting Low Voltage, Series: A4J, Rejection/Non-Rejection: Rejection, 200 A, 600 VAC/300 VDC, 200/100 kA Interrupt, Class: J, Blade Terminal, Clip Mount, Cylindrical Body, Polyester, 1-5/8 in Dia x 5-3/4 in L Body Size
- High current - limitation for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Fiberglas body provides dimensional stability in harsh industrial environments
- Easy-to-read imprint label for quick recognition and replacement
- Tin-plated copper, silver-plated copper contact
- North American power fuses
| Class | J |
|---|---|
| Body Size | 1-5/8 in Dia x 5-3/4 in L |
| Material | Polyester |
| Series | A4J |
| Voltage Rating | 600 VAC/300 VDC |
| Mounting Type | Clip |
| Terminal Type | Blade |
| Type | Current Limiting Low Voltage |
| Body Type | Cylindrical |
| Amperage Rating | 200 A |
| Rejection/Non-Rejection | Rejection |
| Interrupt Rating | 200/100 kA |
| Brand | Merson Fuses |
| Class | class J |
