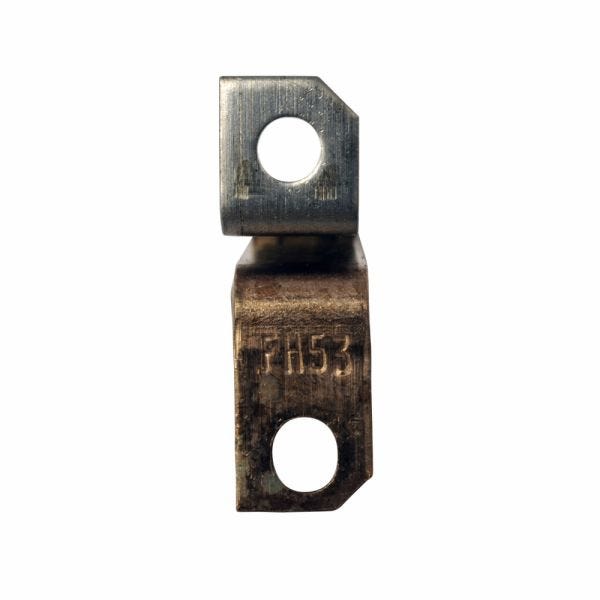

EATON Overload Relay Heater, Type B100, 28.8 to 31.4/33.4 to 36.4 A Ambient, 26.7 to 29.1/31.5 to 34.5 A Non-Comp Full Load, Fast/Thermal Trip, 2.1 in L x 1.3 in W x 0.8 in H Size, NEMA 2 Enclosure
- Select heater coils based on full load current (FLA) shown on motor nameplate
- Type A and b overload relay
- Heater coils are rated to protect 40 deg C rise and a service factor of 1.15
- 26.7 to 29.1 A, 31.5 to 34.5 A non-compensating full load current
- 90 a fuse
| Full Load Current | 28.8 to 31.4/33.4 to 36.4 A Ambient, 26.7 to 29.1/31.5 to 34.5 A Non-Comp |
|---|---|
| Type | Type B100 |
| Enclosure Type | NEMA 2 |
| Size | 2.1 in L x 1.3 in W x 0.8 in H |
| Trip Type | Fast/Thermal |
| Brand | Eaton |
| Type | Overload Heaters |
