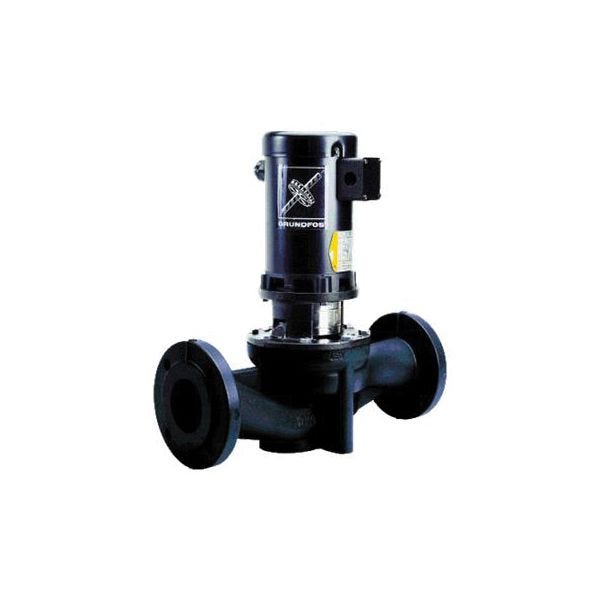

Grundfos 96411803
TP40-240/2 230/3PH INLINE PUMP
SKU
585654
Grundfos Circulator Pump, 1-Stage In-Line Direct-Coupled, Series: TP Series, 63 gpm Flow Rate, 1-1/2 in Inlet, 1-1/2 in Outlet, 78.74 ft Maximum Head, 5.21 ft Maximum Suction Lift, 1-1/2 hp Power, 208 to 230/460 VAC, 5 to 4.6/2.3 A, 60 Hz Frequency, 3 ph ph, 145 psi Maximum, 3450 rpm Motor, 1.15 Service Factor, AISI 304 Stainless Steel Impeller, 104 deg F Ambient, Totally Enclosed Fan Cooled Enclosure, ASTM 25B Cast Iron, 342.9 mm L x 483.4 mm H Dimensions
- This pump model is notable for its high levels of reliability and efficiency
- Quiet, highly-efficient motors are standard components
- All TP pumps are electro-coated to ensure high corrosion resistance
- Optimized hydraulics for high efficiency
- Reduced power consumption
- Top-pull-out design
- Easy dismantling for service
- Unlike end-suction pumps, in-line pumps allow the use of straight pipe work, which often results in reductions in installation cost and amount of space occupied
- The impeller is hydraulically and mechanically balanced to increase the life of motor bearings and shaft seals
- Pump housing and pump head/motor stool are electro-coated
- Improved corrosion resistance
- Industry standard flange-to-flange dimensions for easy retrofit applications
- Stainless steel impeller and seal ring for extended pump life
- TP pumps are fitted with high-efficiency motors
- DN40 nominal diameter of inlet and outlet port
- Basic pump version
- Basic material version
- Bellow rubber shaft seal, tungsten carbide rotating face, carbon resin-impregnated stationary seal face and EPDM secondary seal
| Voltage Rating | 208 to 230/460 VAC |
|---|---|
| Power Rating | 1-1/2 hp |
| Maximum Pressure | 145 psi |
| Maximum Head | 78.74 ft |
| Type | 1-Stage In-Line Direct-Coupled |
| Amperage Rating | 5 to 4.6/2.3 A |
| Phase | 3 ph |
| Material | ASTM 25B Cast Iron |
| Inlet Size | 1-1/2 in |
| Temperature Rating | 104 deg F Ambient |
| Dimensions | 342.9 mm L x 483.4 mm H |
| Series | TP Series |
| Impeller Type | AISI 304 Stainless Steel |
| Motor Speed | 3450 rpm |
| Outlet Size | 1-1/2 in |
| Maximum Suction Lift | 5.21 ft |
| Service Factor | 1.15 |
| Flow Rate | 63 gpm |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
