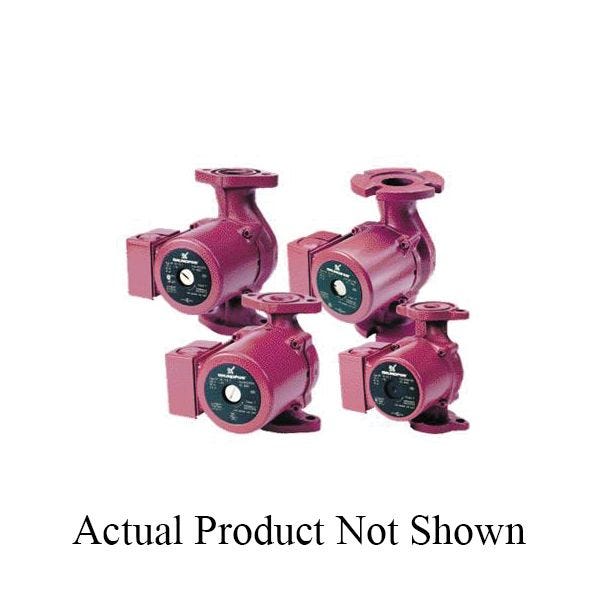

Grundfos 98961765
1/6HP 230V SS SUPERBRUTE
SKU
860763
Grundfos, 98961765, Circulator Pump, Canned Rotor, Series: UP Series, 17.6 gpm Flow Rate, 28.87 ft Maximum Head, 196 W Power, 230 VAC, 0.7 to 0.9 A, 60 Hz Frequency, 1 ph, 145 psi Maximum, Composite PES Impeller, 140 deg F, Ceramic Radial/Carbon Thrust Bearing, 6 in W x 6-1/2 in H Dimensions
- Maintenance-free
- Low noise and low energy
- Complete range and wide range of accessories
- Stainless steel rotor can and bearing plate
- Corrosion-resistant impeller
- No additional motor protection is required
- Non-electronically controlled circulator pumps for domestic building with speed control
- Flange pipe connection
- Stainless steel pump housing
- Large stator
- 3-speed motor
| Voltage Rating | 230 VAC |
|---|---|
| Power Rating | 196 W |
| Bearing Type | Ceramic Radial/Carbon Thrust |
| Maximum Pressure | 145 psi |
| Maximum Head | 28.87 ft |
| Type | Canned Rotor |
| Amperage Rating | 0.7 to 0.9 A |
| Phase | 1 ph |
| Temperature Rating | 140 deg F |
| Dimensions | 6 in W x 6-1/2 in H |
| Series | UPS26-99FS |
| Impeller Type | Composite PES |
| Flow Rate | 17.6 gpm |
| Frequency Rating | 60 Hz |
| Brand | Grundfos |
