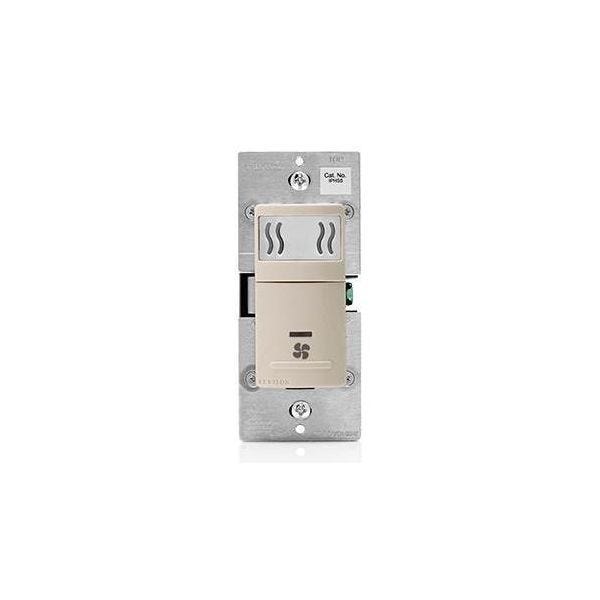

Leviton IPHS5-1LT
IPHS5-1LT HUMIDITY SENSOR
SKU
702397
Leviton® Humidity Sensor and Fan Control, 1-Pole Manual, Series: IPHS5, 120 VAC, 5 A, 1 hp, 6 hp Power, On/Off Operational Mode, Wall Mounting, Threaded Terminal, Light Almond, 4.13 in H x 1.75 in W x 1.22 in D
- Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
- Sensor uses microprocessor and digital sensing technology to continuously monitor and manage humidity levels in a room
- Built-in timer sets the minimum on time for the ventilation fan
- A sensitivity level adjustment allows users to adjust the sensor's sensitivity to ambient air to prevent false cycling
- Features an air cycle mode which automatically turns ON the ventilation fan for a set period of time and repeats the cycle hourly
- Replaces a 1-pole switch for control of ventilation fan or a fan/light combination
- Fits in a standard wallbox and requires a neutral for operation
- The device's built-in humidistat control meets CALGREEN requirements for indoor air quality and exhaust
- Screw terminals for wiring
- Without wallplate and wire nut
- 10 to 45 min timing
| Terminal Type | Threaded |
|---|---|
| Type | 1-Pole Manual |
| Dimensions | 4.13 in H x 1.75 in W x 1.22 in D |
| Amperage Rating | 5 A |
| Color | Light Almond |
| Series | IPHS5 |
| Mounting | Wall |
| Power Rating | 1/6 HP |
| Voltage Rating | 120 VAC |
| Operational Mode | On/Off |
| Brand | Leviton Mfg |
| Switch | Fan Control |
