LEGEND 101-530

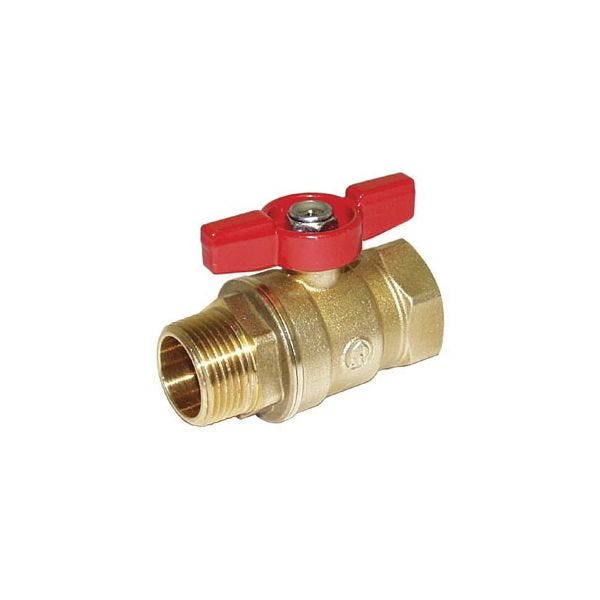

1/8" MXF MINI BALL VALVE
SKU
621890
LEGEND Mini Ball Valve, Series: T-900MxF-T, 1/8 in Nominal, MNPT x FNPT End Style, 600 psi Pressure, Large Port, Media: Gas/Oil/Water, T-Handle Actuator, Forged Brass Ball, 1.87 in Inlet to Outlet Length, 1 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE Softgoods, 1.91 in W x 1.36 in H Dimensions, Domestic/Import: Import
- Forged end adapter, chrome plated forged brass stem/ball, 3M Dyneon® TFM® PTFE anti-friction thrust washer anti-friction washer/seat, Dupont® FKM fluorocarbon stem O-Ring, commercial grade, die-cast coated aluminum handle dacromet coated steel with PVC resin lock handle nut
- Traditional forged brass mini-ball valve, with cast aluminum tee handle
- T-handle equipped models can be used as gauge-cock isolation valves without the gauge face obstruction associated with a lever handle equipped valve
- Improved 3M Dyneon® TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly
- Bottom loaded blow-out proof stem is a maintenance-free, dual O-Ring seal design, eliminating the need to tighten a packing nut
- Space-saving male-by-female end connections are ideal for confined piping installations
- TFM/PTFE thrust washer
| Softgoods Material | TFM/PTFE |
|---|---|
| Dimensions | 1.91 in W x 1.36 in H |
| Port Type | Large |
| End Style | MNPT x FNPT |
| Media | Gas/Oil/Water |
| Ball Material | Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 1.87 in |
| Top to Inlet Center | 1 in |
| Pressure Rating | 600 psi |
| Body Material | Brass |
| Nominal Size | 1/8 in |
| Series | T-900MxF-T |
| Actuator Type | T-Handle |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Legend |
