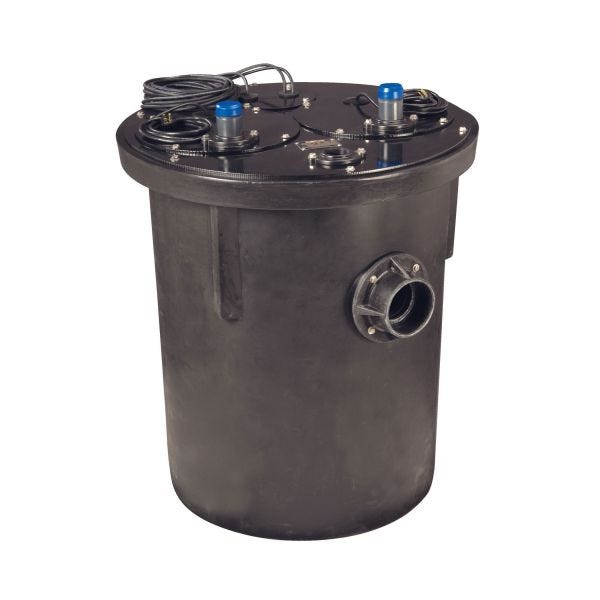

Liberty Pumps 1102/LE102M
LIBERTY DUPLEX 1HP 230V
SKU
536199
Liberty Pumps®, 1102/LE102M, Series: 1100, 109 gpm Flow Rate, 4 in Inlet, 208 to 230 VAC, 8 A Full Load, 1 ph, 1 hp, 36 ft Maximum Head, 110 gal Capacity, 2 in Discharge Pipe, Specifications: 1 Safety Factor, 221 deg F Thermal Overload, Polyethylene, 1725 rpm Motor
- Heavy duty structural foam basin
- Completely assembled system with piping included
- Floats for control unit factory pre-set
- 4 in inlet hub with rubber pipe seal
- Heavy, 1/4 in enamel coated steel cover
- Separate sump access covers
- 10 in diameter inspection cover
- Restraints to hold pumps securely in position
- PRG grinder models come with 2 in discharge only
| Series | 1100 |
|---|---|
| Horsepower | 1 hp |
| Flow Rate | 109 gpm |
| Motor Speed | 1725 rpm |
| Discharge Pipe Size | 2 in |
| Amperage Rating | 8 A Full Load |
| Material | Polyethylene |
| Phase | 1 ph |
| Voltage Rating | 208 to 230 VAC |
| Maximum Head | 36 ft |
| Specifications | 1 Safety Factor |
| Inlet Size | 4 in |
| Temperature Rating | 221 deg F Thermal Overload |
| Capacity | 110 gal |
| Brand | Liberty Pumps |
