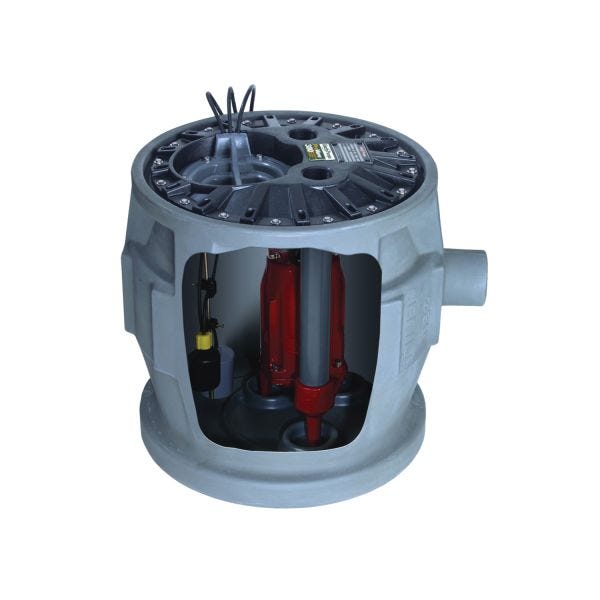

Liberty Pumps P382XPRG102/A2
PROVORE 380 PKG 230V W/ALM2
SKU
595261
Liberty Pumps®, P382XPRG102/A2, Series: 380, Automatic/Non Automatic: Automatic, 41 gal Basin, 2 in Outlet, 1 hp, 230 VAC, 6 FLA/23.7 A Locked Rotor, 60 Hz Frequency, 1 ph, SJTW 10 ft Cord, 1 Service Factor, Cast Iron Impeller, 221 deg F Thermal Overload, Polyethylene Tank
- System can be installed above or below floor level
- QuickTree® technology allows easy access and removal of switch without disturbing pump or plumbing
- Integrated rubber seals permanently attached to cover
- Unique cord seal technology integrated into the inspection cover
- Shallow basin design (24 in) for easier installation in difficult soil/bedrock locations
- Integrally molded torque stops secure the pump in its proper position
- Integrally molded anti-flotation collar
- Completely assembled
- Powder coating paint
- SCH 80/XH discharge pipe
- Compact heavy-duty polyethylene basin and cover
- Standard 16 bolt cover passes 10 ft stack test
| Material | Polyethylene Tank |
|---|---|
| Service Factor | 1 |
| Outlet Size | 2 in |
| Cord Type | SJTW 10 ft |
| Series | 380 |
| Basin Capacity | 41 gal |
| Frequency Rating | 60 Hz |
| Horsepower | 1 hp |
| Impeller Type | Cast Iron |
| Automatic/Non Automatic | Automatic |
| Temperature Rating | 221 deg F Thermal Overload |
| Amperage Rating | 6 FLA/23.7 A Locked Rotor |
| Voltage Rating | 230 VAC |
| Phase | 1 ph |
| Brand | Liberty Pumps |
