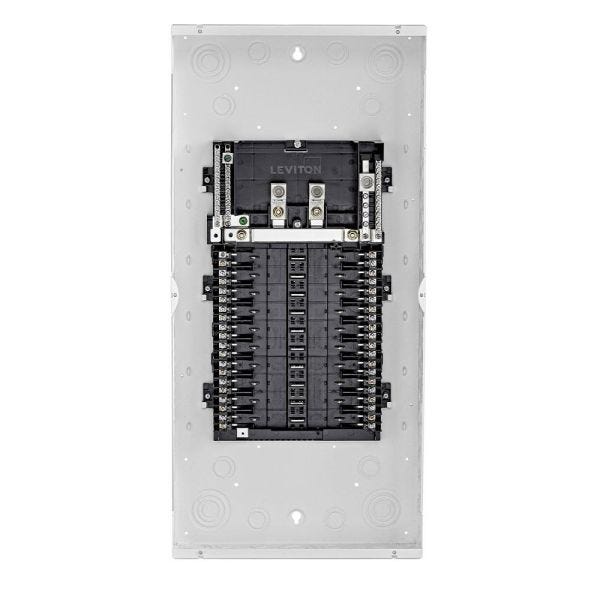

Leviton LP222-LPD
225A 20SP LC ML INDOOR PANEL
SKU
771276
Leviton®, LP222-LPD, Load Center, 120 to 240 VAC, 225 A, 10 kA Interrupt, 20 Circuits, 20 Spaces, 4 AWG - 2/0 AWG Cu/Al Ground/3 AWG - 300 MCM Cu/Al Supply Wire, NEMA 1 Enclosure, Galvanized Steel Housing Material, 30 in H x 14.25 in W x 4 in D Dimensions
- Terminate all hot and neutral wires at custom lugs in the panel,not at the circuit breaker
- The entire panel can be wired at rough-in without circuit breakers installed
- At final installation, simply plug-on the circuit breaker
- No pigtails on circuit breakers
- Easily invertible for bottom feed applications
- Copper bus is standard
- Notches stamped into the enclosure for cable ties promote secure and neat wiring
- Hydraulic-Magnetic trip technology ensures precise tripping even in extreme temperature ranges
- Leviton GFCI, AFCI and Dual Function circuit breakers feature our patented reset lockout and will not reset if ground- or arc-fault protection is compromised
- Leviton circuit breakers with GFCI technology stand alone as the only circuit breakers on the market that exceed the newest UL requirements for ground-fault protection
- Intuitive LEDs help communicate trip condition and type of fault (AF/GF) and remain illuminated even when the circuit breaker is in the tripped state
| Number of Circuits | 20 |
|---|---|
| Number of Spaces | 20 |
| Enclosure Type | NEMA 1 |
| Housing Material | Galvanized Steel |
| Dimensions | 30 in H x 14.25 in W x 4 in D |
| Wire Size | 4 AWG - 2/0 AWG Cu/Al Ground/3 AWG - 300 MCM Cu/Al Supply |
| Voltage Rating | 120 to 240 VAC |
| Amperage Rating | 225 A |
| Interrupt Rating | 10 kA |
| Brand | Leviton Mfg |
