MORRIS 94222
3/4" X 20' PEX-A W/O2 COIL
SKU
747339

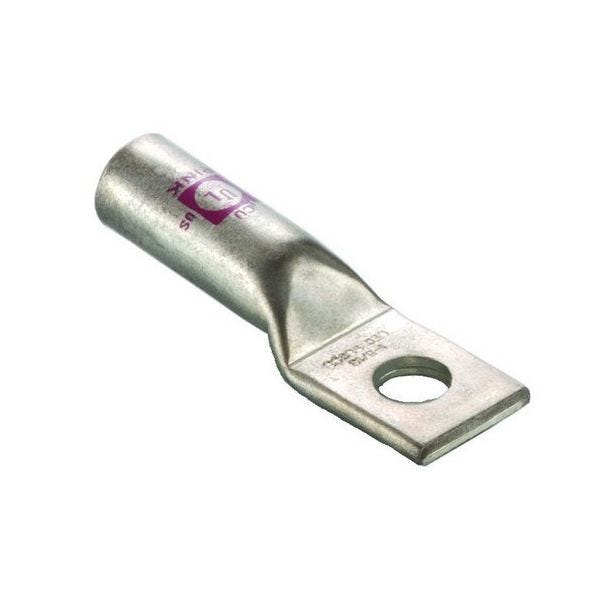

MORRIS Compression Lug, 1-Hole, Stranded Copper Conductor, 2 AWG Conductor, 35 kV, 5/16 in Stud, 0.81 in L x 0.6 in W x 0.1 in THK Tongue, 2.07 in Overall Length, Long Barrel, 0.314 in ID x 0.421 in OD x 1.1 in L Barrel, 90 deg C, 0.33 in Mounting Hole, Copper, Brown
- 1-hole copper compression lugs are made of high conductivity seamless electrolytic copper
- Uniform bright electro tin plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Crimp marks indicate proper crimp locations
- Compression lugs are marked with die index and color codes for easy identification
- Long barrel accommodates multiple crimps
- Listed for 35 kv when properly installed
- Single Mounting Hole
| Tongue Size | 0.81 in L x 0.6 in W x 0.1 in THK |
|---|---|
| Stud Size | 5/16 in |
| Barrel Type | Long |
| Overall Length | 2.07 in |
| Conductor Type | Stranded Copper |
| Conductor Size | 2 AWG |
| Barrel Size | 0.314 in ID x 0.421 in OD x 1.1 in L |
| Mounting Hole Size | 0.33 in |
| Voltage Rating | 35 kV |
| Material | Copper |
| Type | 1-Hole |
| Color | Brown |
| Temperature Rating | 90 deg C |
| Brand | Morris |
