LittleGIANT 553206
TANK TYPE COND.PUMP 1/18HP 115
SKU
312716

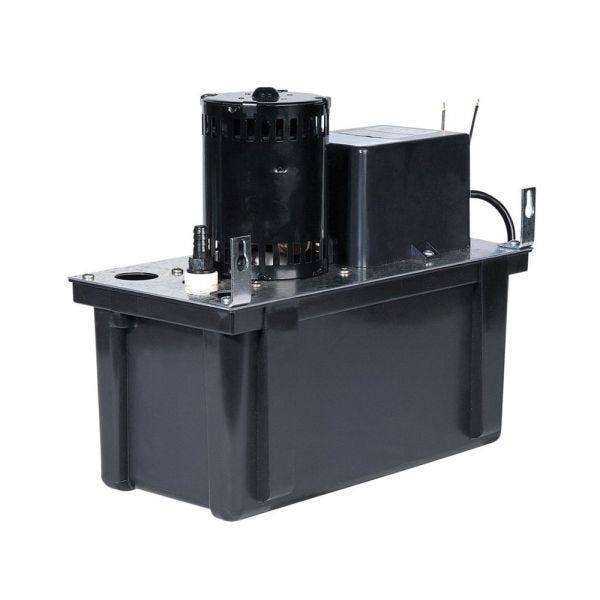

Little Giant® Condensate Removal Pump, Automatic, Series: VCL, 270 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 24 ft Shutoff Head, 148 W, 2.5 A 115 VAC 60 Hz 1/18 hp, 10.4 psi Maximum, 1 gal Reservoir, Polymer Float, 120 deg F, ABS, 12 in L x 6 in W x 10-1/2 in H
- Vertical centrifugal pump design
- Automatic start and stop operation
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS switch housing, pump housing and tank
- Galvanized steel tank cover
- Stainless steel motor shaft
- Polypropylene impeller
- Acetal discharge adapter
- Thermally protected, fan cooled motor
- Model VCL-24UL
| Reservoir Capacity | 1 gal |
|---|---|
| Material | ABS |
| Series | VCL |
| Power Rating | 148 W |
| Outlet Size | 3/8 in OD Barbed |
| Shutoff Head | 24 ft |
| Flow Rate | 270 gph |
| Float Material | Polymer |
| Type | Automatic |
| Maximum Pressure | 10.4 psi |
| Temperature Rating | 120 deg F |
| Electrical Ratings | 2.5 A 115 VAC 60 Hz 1/18 hp |
| Dimensions | 12 in L x 6 in W x 10-1/2 in H |
| Inlet Size | 1-1/8 in |
| Brand | Little Giant |
