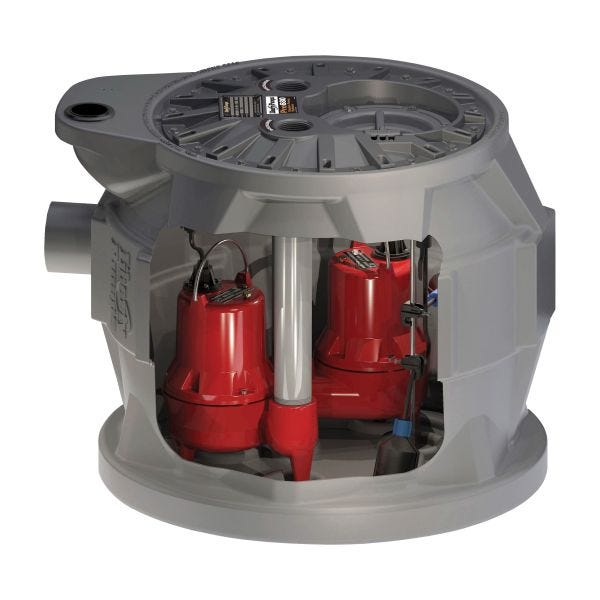

Liberty Pumps P682XLE51-2
1/2HP 115V DUPLEX PUMP SYSTEM
SKU
906390
Liberty Pumps®, P682XLE51-2, Series: Pro680, 160 gpm Flow Rate, 115 VAC, 12 A, 1 ph, 1/2 hp, 24 ft Maximum Head, 41 gal Capacity, 2 in Discharge Pipe, Specifications: 1 Safety Factor, 221 deg F Thermal Overload, 2 in Solids Handling, Polyethylene, 1725 rpm Motor
- Fully assembled from factory
- Compact heavy duty polyethylene basin and cover
- 46 gal capacity for longer pump cycles
- Can be installed above or below floor level
- Two pumps provide secure uninterrupted service
- Easy access cover with QuickTree® technology allows for quick float removal
- Heavy duty integrated rubber gaskets on covers
- Unique cord seal technology integrated into the inspection cover
- Shallow basin design (24 in) for easier installation in difficult soil/bedrock locations
- Automatic operation
- Integrally molded anti-flotation collar
- Completely assembled
- Secure 16 bolt cover passes 10 ft stack test
- Indoor controller
| Series | Pro680 |
|---|---|
| Horsepower | 1/2 hp |
| Flow Rate | 160 gpm |
| Motor Speed | 1725 rpm |
| Solids Handling | 2 in |
| Discharge Pipe Size | 2 in |
| Amperage Rating | 12 A |
| Material | Polyethylene |
| Phase | 1 ph |
| Voltage Rating | 115 VAC |
| Maximum Head | 24 ft |
| Specifications | 1 Safety Factor |
| Temperature Rating | 221 deg F Thermal Overload |
| Capacity | 41 gal |
| Brand | Liberty Pumps |
