Red-White Valve 5020AB 1-1/4

LF 1-1/4 PRESS BALL VALVE
SKU
568661
The product cannot be delivered by Truck Shipping

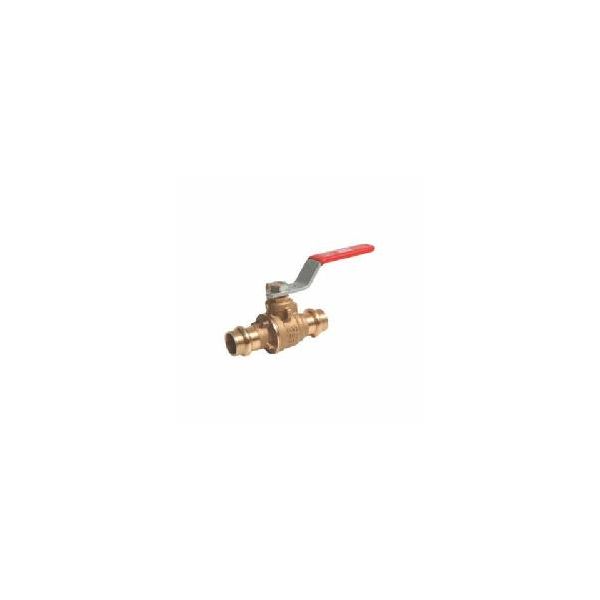

RWV® Ball Valve, Lead Free 2-Piece, Series: 5020AB, 1-1/4 in Nominal, Dual Female EzPress, 600 lb WOG, 266 deg F, Full Port, 1.26 in Orifice, Chrome Plated Low Lead Brass Ball, 4.29 in Inlet to Outlet Length, 2.82 in Top to Inlet Center, Bronze Body, Brass Stem and PTFE Seat Trim, PTFE Softgoods

  • Blow-out proof stem
  • Adjustable packing nut
  • PTFE packing ring/O-ring
More Information
Softgoods Material PTFE
Port Type Full
End Style Dual Female EzPress
Ball Material Chrome Plated Low Lead Brass
Inlet to Outlet Length 4.29 in
Top to Inlet Center 2.82 in
Type 2-Piece
Pressure Rating 600 lb WOG
Orifice Size 1.26 in
Body Material Bronze
Nominal Size 1-1/4 in
Temperature Rating 266 deg F
Series 5020AB
Trim Material Brass Stem and PTFE Seat
Brand Red & White Valve
Type Ball Valve
Size 1 1/4"
