RWV 9517AB 1/2
LF 1/2" THRD CIRCUIT SETTER
SKU
598667

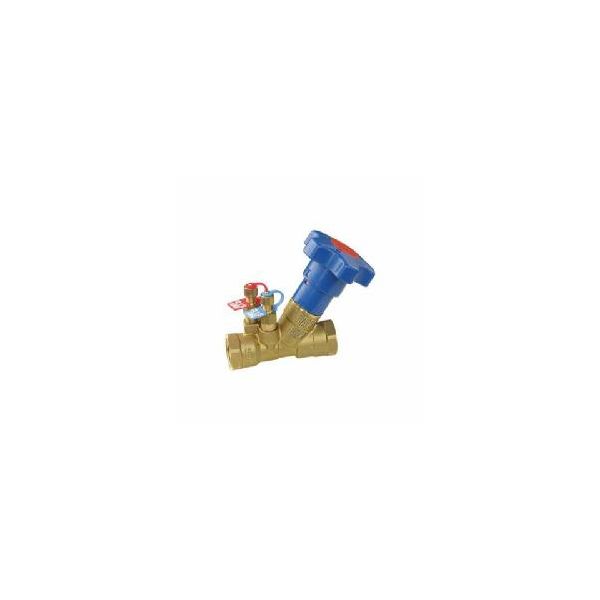

RWV® Hydronic Balancing Valve, Series: 9517AB, 1/2 in Nominal, NPT, 300 lb WOG, 15 to 260 deg F, 0.98 gpm, Media: Water, Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Perox Disc O-Ring, 3.46 in L, Import
- Fixed orifice design
- Integral memory stop
- Low lead DZR brass fixed orifice double regulating globe valve
- Positive shut-off with memory stop
- Intended for HVAC and domestic water use
- Tolerance on nominal CVS +/-3% (test according to BS7350)
| Trim Material | DZR Brass |
|---|---|
| Nominal Size | 1/2 in |
| Actuator Type | Adjustable Handwheel |
| Series | 9517AB |
| Body Material | DZR Brass |
| Softgoods Material | PTFE Disc Gasket/EPDM Perox Disc O-Ring |
| Temperature Rating | 15 to 260 deg F |
| Media | Water |
| Flow Rate | 0.98 gpm |
| Domestic/Import | Import |
| Pressure Class | 300 lb WOG |
| Dimensions | 3.46 in L |
| End Style | NPT |
| Brand | Red & White Valve |
