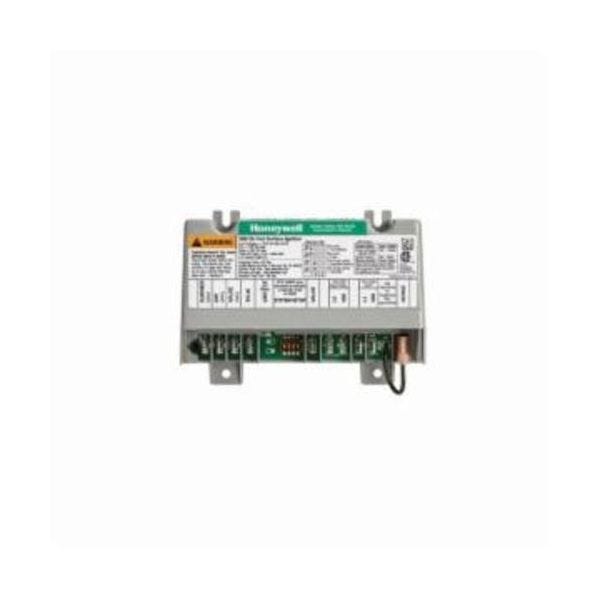

Resideo S8910U3000/U
HWL UNIV HOT SRF IGN MOD
SKU
667692
Resideo Hot Surface Ignition Module, Universal, 24 VAC, 2 A, 24 VAC, 32 s Prepurge
- Replaces over 800 White-Rodgers, Robertshaw® and Honeywell® hot surface ignition models
- For 120 VAC (up to 5 A) surface igniter (Norton 201/271 or equivalent)
- S8910U 3000 series has LED status indicator and microammeter ports for easy trouble shooting
- For local (single rod) or remote (dual rod) rectification type flame sensing
- Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module
- Provides one or three ignition trials (four-second or seven-second trials) per call for heat
- Field selectable number of ignition trials and trial time based on unit being replaced
- Igniter warm up time: 7 (12 sec and third trial), 17 (27 sec and third trial), 34 or 45 sec
- 24 V control at 60 Hz
| Type | Universal |
|---|---|
| Prepurge Time | 32 s |
| Control Voltage | 24 VAC |
| Voltage Rating | 24 VAC |
| Amperage Rating | 2 A |
| Brand | Honeywell |
