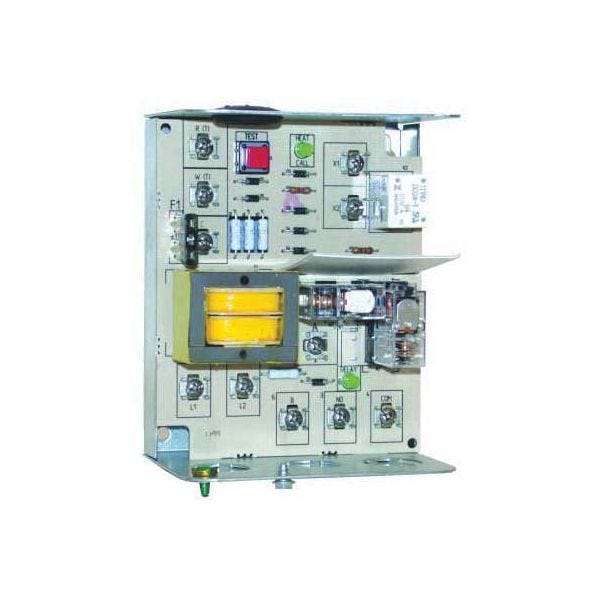

Resideo R8845U1003/U
H/W UNIV HYD SWITCHING RELAY
SKU
280221
Resideo Switching Relay, Universal, 120 VAC, 0.4 A, 60 Hz, 24 VAC Coil, Surface Mount, -20 to 120 deg F, 4-7/16 in W x 3-1/2 in D x 6-1/4 in H
- Replaceable socketed relays
- Two troubleshooting LED
- Push-to-test button
- Replaceable transformer fuse
- Low-voltage contact rating for PowerPile® applications
- Long-life DC relay drive control technology
- Relay for use with external 24 VAC or 24 VDC supply, with line voltage control, or with internal 24 VAC transformer supply
- One model replaces many competitor models
- Maximum connected load is 2000 VAC
- Zinc plated steel finish
| Voltage Rating | 120 VAC |
|---|---|
| Amperage Rating | 0.4 A |
| Mounting Type | Surface |
| Coil Voltage | 24 VAC |
| Frequency Rating | 60 Hz |
| Dimensions | 4-7/16 in W x 3-1/2 in D x 6-1/4 in H |
| Type | Universal |
| Temperature Rating | -20 to 120 deg F |
| Brand | Honeywell |
