HAYWARD TB2400S
4"CPVC T/U BV W/VITON O-RING
SKU
774088

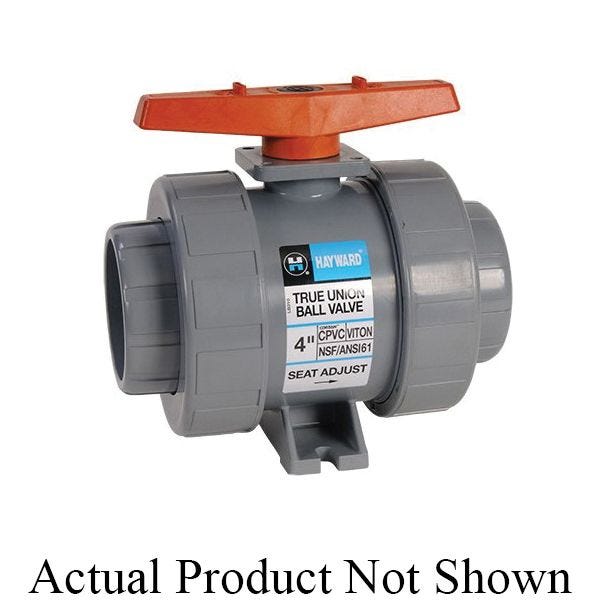

HAYWARD® True Union Ball Valve, Series: TB Series, 4 in Nominal, Socket, 235 psi, 34 to 180 deg F, Full Port, T-Handle Actuator, CPVC Ball, 12.30 in Inlet to Outlet Length, 7.62 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, FPM
- All true union ball valves are assembled with silicone free lubricant and have PTFE seats
- For actuator-ready
- Fpm O-ring
| End Style | Socket |
|---|---|
| Body Material | CPVC |
| Pressure Rating | 235 psi |
| Inlet to Outlet Length | 12.30 in |
| Softgoods Material | FPM |
| Ball Material | CPVC |
| Top to Inlet Center | 7.62 in |
| Series | TB Series |
| Trim Material | PTFE Seat |
| Temperature Rating | 34 to 180 deg F |
| Actuator Type | T-Handle |
| Port Type | Full |
| Nominal Size | 4 in |
| Brand | Hayward |
| Size | 4" |
