Red-White Valve 9519AB 1/2
LF 1/2" CXC CIRCUIT SETTER
SKU
598065

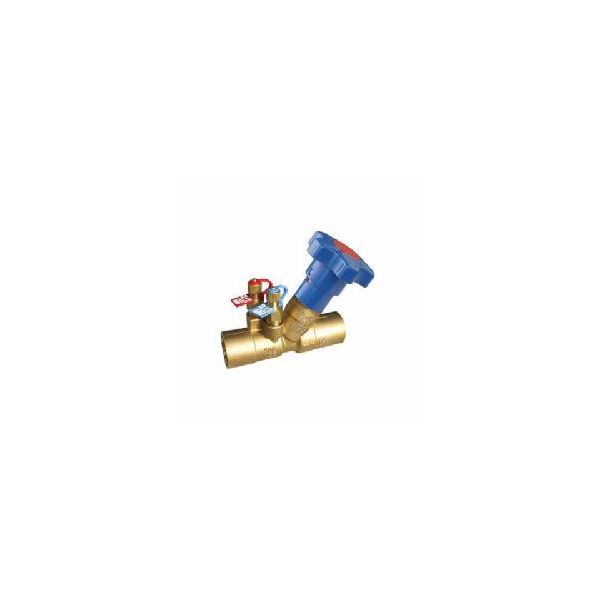

RWV® Hydronic Balancing Valve, Series: 9519AB, 1/2 in Nominal, Solder, 300 lb WOG, 15 to 260 deg F, 2.35 gpm, Media: Water, Adjustable Handwheel Actuator, DZR Brass Body, DZR Brass Trim, PTFE Disc Gasket/EPDM Perox Disc O-Ring, 3.74 in L, Import
- Fixed orifice design
- Integral memory stop
- Low lead DZR brass fixed orifice double regulating globe valve
- Positive shut-off with memory stop
- Intended for HVAC and domestic water use
- Tolerance on nominal CVS +/-3% (test according to BS7350)
| Trim Material | DZR Brass |
|---|---|
| Nominal Size | 1/2 in |
| Actuator Type | Adjustable Handwheel |
| Series | 9519AB |
| Body Material | DZR Brass |
| Softgoods Material | PTFE Disc Gasket/EPDM Perox Disc O-Ring |
| Temperature Rating | 15 to 260 deg F |
| Media | Water |
| Flow Rate | 2.35 gpm |
| Domestic/Import | Import |
| Pressure Class | 300 lb WOG |
| Dimensions | 3.74 in L |
| End Style | Solder |
| Brand | Red & White Valve |
