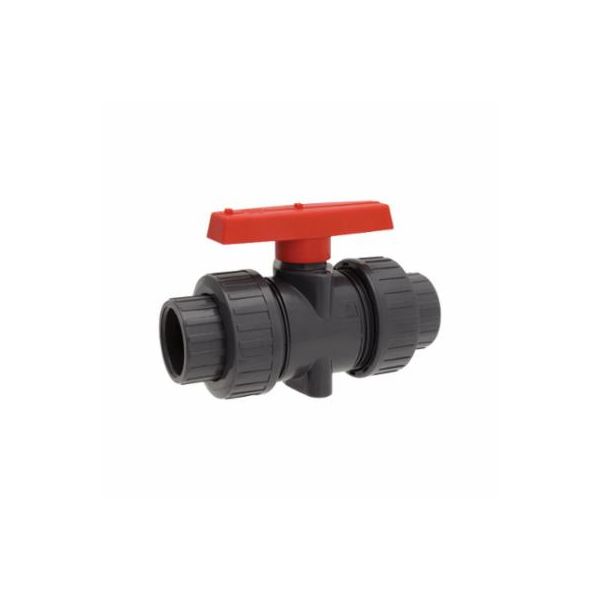

HAYWARD TBB2020CPEG
2" CPVC SCH 80 TR/U BALL VALVE
SKU
418913
HAYWARD® True Union Ball Valve, Series: TBB, 2 in Nominal, Socket/Thread End Style, 225 psi Pressure, 70 deg F, Full Port, 1.89 in Orifice, 8.15 in Inlet to Outlet Length, 4.17 in Top to Inlet Center, CPVC Body, PTFE Seat Trim, EPDM Softgoods, Gray
- Easy maintenance
- Easily automated
- Double O-Ring stem seal
- Adjustable seat retainer
- 225 psi at 70 deg F non-shock
- EPDM O-ring
| Color | Gray |
|---|---|
| End Style | Socket/Thread |
| Body Material | CPVC |
| Pressure Rating | 225 psi |
| Inlet to Outlet Length | 8.15 in |
| Softgoods Material | EPDM |
| Top to Inlet Center | 4.17 in |
| Series | TBB |
| Trim Material | PTFE Seat |
| Temperature Rating | 70 deg F |
| Port Type | Full |
| Orifice Size | 1.89 in |
| Nominal Size | 2 in |
| Brand | Hayward |
| Size | 2" |
| Type | Valves |
