WATTS 0122797
LF 4 909 W/NRS VALVES
SKU
584059

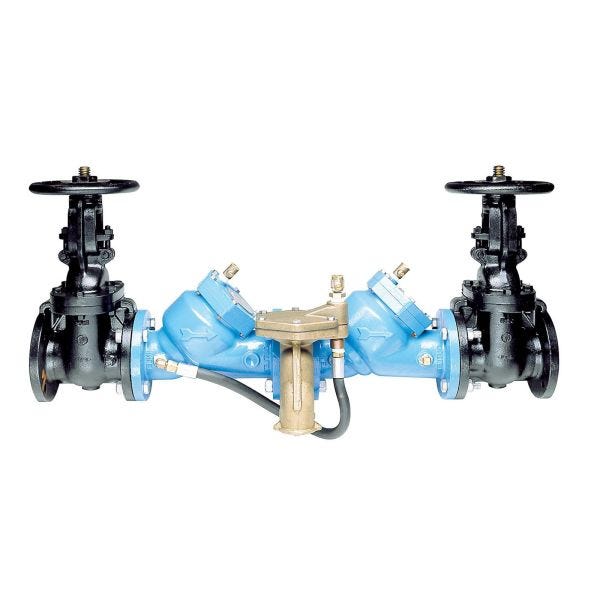

WATTS®, 0122797, Reduced Pressure Zone Assembly, Series: LF909, 4 in Nominal, 175 psi Pressure, 33 to 110 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, Cast Copper Silicon Alloy Body, Epoxy Coated, 55-1/8 in L Dimensions, Domestic
- Utilize advanced ArmorTek coating technology to resist corrosion of internal
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Replaceable seats
- Stainless steel internal parts
- Captured spring assemblies for safety
- Fused epoxy coated and lined checks
- Industrial strength sensing hose
- Field reversible relief valve
- Air-in/water-out relief valve design provides maximum capacity during emergency conditions
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Non-rising stem resilient seated gate valve
| Temperature Rating | 33 to 110 deg F |
|---|---|
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Resilient Seated Gate Valve |
| Finish | Epoxy Coated |
| Dimensions | 55-1/8 in L |
| Pressure Rating | 175 psi |
| Nominal Size | 4 in |
| Series | LF909 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
