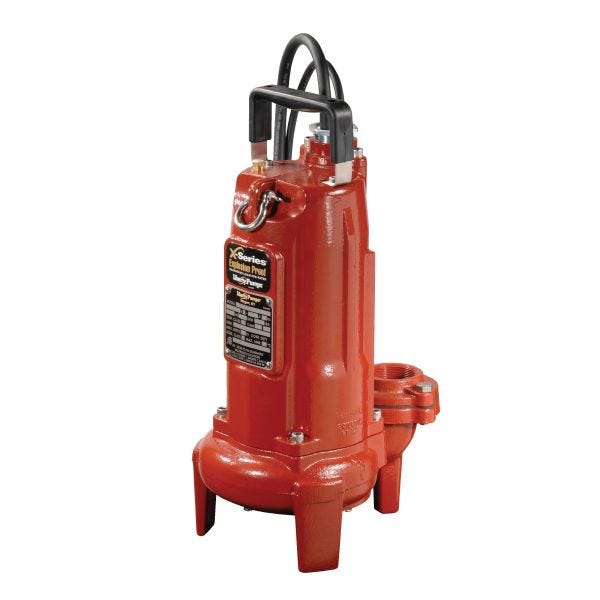

Liberty Pumps XLE51M-2
LIBERTY EXPLOS PRF 1/2HP PUMP
SKU
894323
Liberty Pumps®, XLE51M-2, Series: XLE50, 170 gpm Flow Rate, 2 in, 3 in Outlet, 27 ft Maximum Head, 1/2 hp, 115 VAC, 10.5 A Full Load/46.7 A Locked Rotor, 60 Hz Frequency, 1 ph, 1725 rpm Motor, SOOW 25 ft Cord, Cast Iron 2-Vane Semi-Open Impeller, 221 deg F Thermal Overload, Ball Bearing, Cast Iron, 13 in W x 21.8 in H Dimensions
- Explosion proof for hazardous locations
- Heavy cast iron construction
- Dual shaft seals
- Seal fail sensor
- 416 stainless steel rotor shaft
- For use with ISS Series and ISD Series intrinsically safe panels
- Quick connect 25 ft power cord
- Ball bearings upper and lower
- 2 in solid handling
| Outlet Size | 2 in, 3 in |
|---|---|
| Series | XLE50 |
| Horsepower | 1/2 hp |
| Flow Rate | 170 gpm |
| Motor Speed | 1725 rpm |
| Frequency Rating | 60 Hz |
| Amperage Rating | 10.5 A Full Load/46.7 A Locked Rotor |
| Material | Cast Iron |
| Phase | 1 ph |
| Voltage Rating | 115 VAC |
| Bearing Type | Ball |
| Maximum Head | 27 ft |
| Impeller Type | Cast Iron 2-Vane Semi-Open |
| Temperature Rating | 221 deg F Thermal Overload |
| Dimensions | 13 in W x 21.8 in H |
| Cord Type | SOOW 25 ft |
| Brand | Liberty Pumps |
