Zoeller Company 153-0005

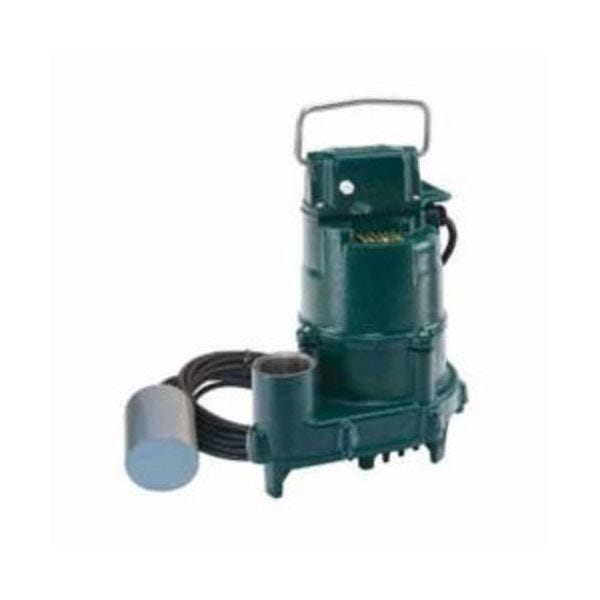

ZOELLER SUMP PUMP
SKU
305519
Zoeller® Effluent Pump, Single Seal, Series: High Head Dose-Mate 150, 77 gpm Maximum, Automatic/Non Automatic: Automatic, 1-1/2 in NPT Outlet, 44 ft Maximum Head, 1/2 hp, 115 VAC, 10.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, Engineered Thermoplastic Non-Clogging Vortex Impeller, 130 deg F, Upper Sleeve/Lower Ball Bearing, Cast Iron, 12-1/8 in H Dimensions
- Corrosion resistant, powder coated epoxy
- Stainless steel lifting handle
- Assembled with stainless steel bolts
- 4/10 hp, passes 3/4 in spherical solids
- Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
- Carbon/ceramic seals
- Upper sleeve bearing and lower ball bearing running in bath of oil
- 20 ft, UL listed power cord with molded, 3-wire plug
- 1-1/2 in NPT vertical discharge
- For septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
- Over 130 deg F special quotation required
| Maximum Flow Rate | 77 gpm |
|---|---|
| Material | Cast Iron |
| Automatic/Non Automatic | Automatic |
| Frequency Rating | 60 Hz |
| Temperature Rating | 130 deg F |
| Impeller Type | Engineered Thermoplastic Non-Clogging Vortex |
| Bearing Type | Upper Sleeve/Lower Ball |
| Series | High Head Dose-Mate 150 |
| Outlet Size | 1-1/2 in NPT |
| Voltage Rating | 115 VAC |
| Maximum Head | 44 ft |
| Motor Speed | 3450 rpm |
| Dimensions | 12-1/8 in H |
| Phase | 1 ph |
| Amperage Rating | 10.5 A |
| Horsepower | 1/2 hp |
| Type | Single Seal |
| Brand | Zoeller |
