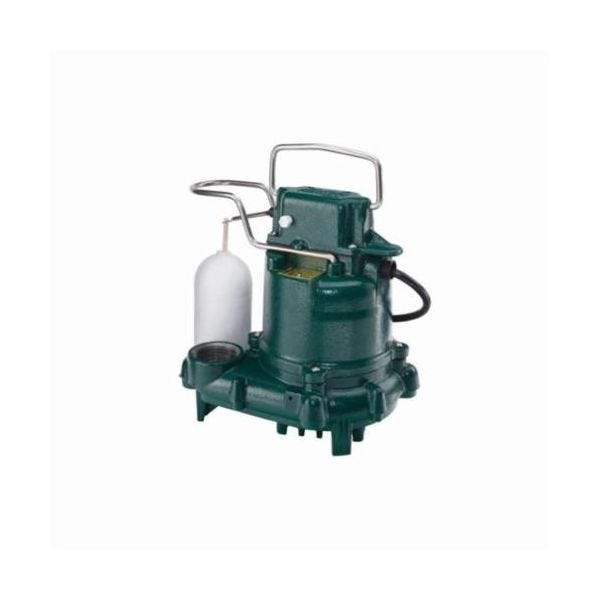

Zoeller Company 53-0001
@ ZOELLER CI SUMP PUMP 3/10 HP
SKU
2202
Zoeller® Effluent/Dewatering Submersible Pump, Automatic, Series: Mighty-Mate M53, 43 gpm, 1-1/2 in Outlet, 19-1/4 ft Maximum Head, 3/10 hp, 115 VAC, 9.7 A, 60 Hz Frequency, 1 ph ph, 1550 rpm Motor, 3-Wire Cord, Non-Clogging Vortex Impeller, 130 deg F, Sleeve Bearing, Cast Iron, 10.0625 in H x 10.06 in W Dimensions
- Corrosion-resistant, powder coated epoxy finish
- No sheet metal parts to rust or corrode
- Stainless steel screws, switch arm, guard and handle
- No screens to clog, watertight, neoprene square ring between motor and pump housing
- Solid, buoyant, polypropylene float, oil filled, hermetically sealed, automatic reset thermal overload protected motor
- Upper and lower sleeve bearings running in bath of oil, Entire unit pressure-tested after assembly, carbon and ceramic shaft seal
- Watertight and dust tight, permanently oiled bearings
- Cast iron switch case, motor and pump housing, engineered thermoplastic base, glass filled, plastic impeller with metal insert
- Entire unit pressure-tested after assembly
- Class B insulation, 7-1/4 in/3 in auto On/Off points
- 1/2 in spherical solid handling, 9 ft cord, oil filled cooling
- Cast iron cap, motor and pump housing, base, carbon and ceramic mechanical seals, engineered plastic impeller, stainless steel hardware, neoprene gasket
- AISI 1215 cold roll steel motor shaft
- Single phase, shaded pole, 3 wire cord and plug
- 1-1/2 in NPT discharge
| Material | Cast Iron |
|---|---|
| Cord Type | 3-Wire |
| Frequency Rating | 60 Hz |
| Temperature Rating | 130 deg F |
| Impeller Type | Non-Clogging Vortex |
| Bearing Type | Sleeve |
| Series | Mighty-Mate M53 |
| Outlet Size | 1-1/2 in |
| Voltage Rating | 115 VAC |
| Flow Rate | 43 gpm |
| Maximum Head | 19-1/4 ft |
| Motor Speed | 1550 rpm |
| Dimensions | 10.0625 in H x 10.06 in W |
| Phase | 1 ph |
| Amperage Rating | 9.7 A |
| Horsepower | 3/10 hp |
| Type | Automatic |
| Brand | Zoeller |
