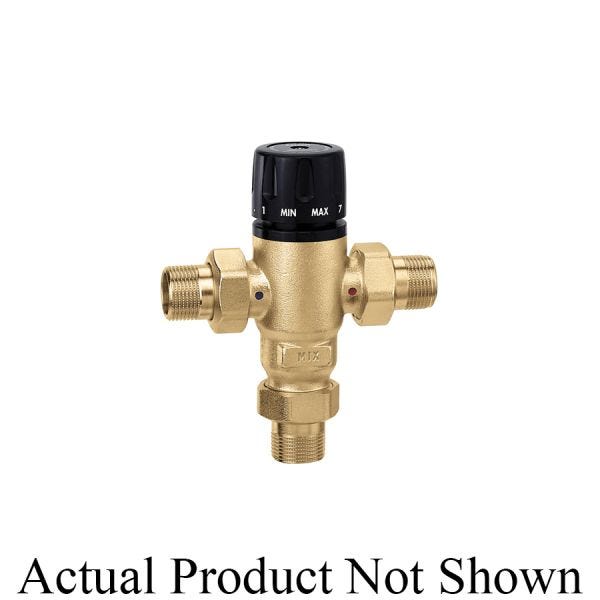

Caleffi 521509AC

3/4" UN SWT 85-150DEG MIX VLV
SKU
595298
The product cannot be delivered by Truck Shipping

Caleffi MixCalâ„¢ Thermostatic and Pressure Balanced Mixing Valve, 3-Way Adjustable, Series: 521, 3/4 in Nominal Size, C, 200 psi, 85 to 150 deg F, 1 gpm Flow, Media: Water/Glycol, 6-1/8 in Inlet to Outlet Length, 2-9/16 in Top to Inlet Center, Brass Body, Stainless Steel Trim, EPDM Seal, 5-13/16 in H

  • Large mixing chamber and thermostatic cartridge - Enables precise mixed temperature stability during inlet temperature and pressure variations
  • Anti-scale polymer materials - Inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life
  • Tamper-proof adjustment setting lock - Prevents tampering of the mixed water temperature setpoint
  • Peroxide-cured seals - Stands up to treated water, chlorine or chloramines
  • Precisely manufactured - Finely machined threads and double o-rings for smooth knob adjustment
  • Internal anti-scale materials
  • Locking set point knob
More Information
Pressure Rating 200 psi
Dimensions 5-13/16 in H
Media Water/Glycol
Series 521
End Style C
Trim Material Stainless Steel
Body Material Brass
Flow Capacity 1 gpm
Type 3-Way Adjustable
Temperature Rating 85 to 150 deg F
Nominal Size 3/4 in
Inlet to Outlet Length 6-1/8 in
Top to Inlet Center 2-9/16 in
Softgoods Material EPDM Seal
Brand Caleffi North America
