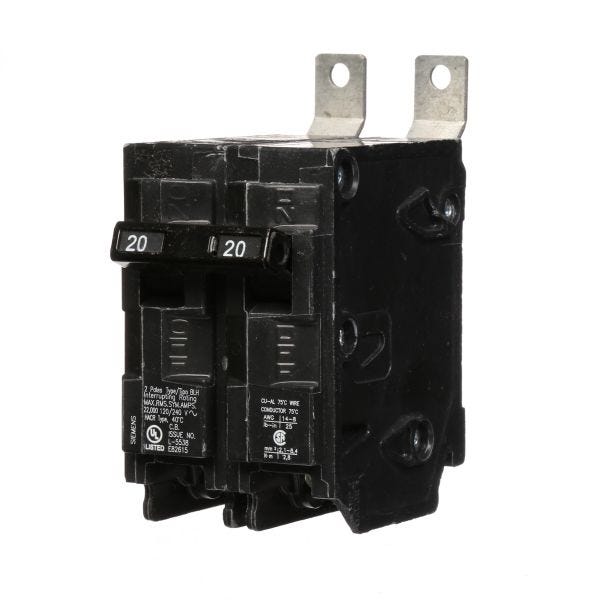

Siemens B220H
20A 2P 120/240V BREAKER
SKU
751675
Siemens Molded Case Circuit Breaker, Type BLH, 120/240 VAC, 20 A, 60 Hz Frequency, 22 kA Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Toggle Actuator, Bolt-On Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 3 in W x 2 in H Dimensions
- Sense when an over current occurs
- Measure the amount of over current
- Act by tripping quickly enough to prevent damage to itself and associated conductors
- Mounting with insta-wire
- 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
| Phase | 1 |
|---|---|
| Wire Size | 14 to 10 AWG, 12 to 10 AWG |
| Type | Type BLH |
| Frequency Rating | 60 Hz |
| Temperature Rating | 40 deg C |
| Number of Poles | 2 |
| Connection Type | Bolt-On |
| Mounting Type | Panel |
| Dimensions | 3 in L x 3 in W x 2 in H |
| Actuator Type | Toggle |
| Interrupt Rating | 22 kA |
| Amperage Rating | 20 A |
| Trip Type | Thermal/Magnetic |
| Voltage Rating | 120/240 VAC |
| Brand | Siemens Ind |
