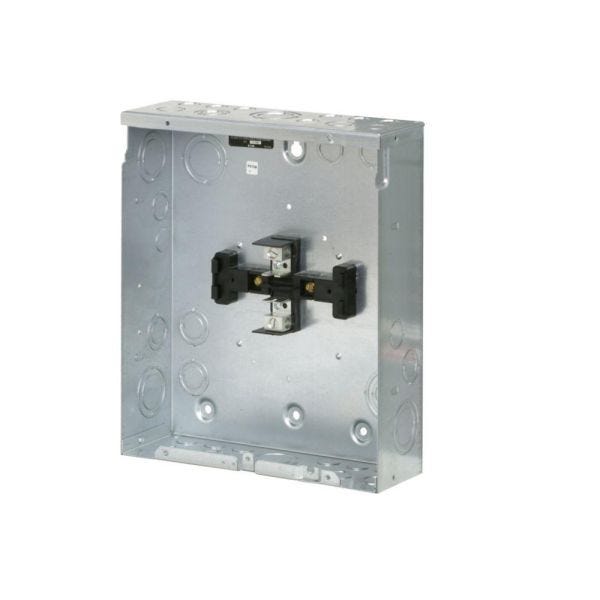

EATON BR48L125SP
125 AMP MAIN LUG LOAD
SKU
676266
EATON Main Lug Loadcenter, 1-Phase, 120/240 VAC, 125 A, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 4 Spaces, 14 to 1/0 AWG Wire, Surface Mount, NEMA 1, NEMA 7 Enclosure Box, Metal Housing, 3.56 in L x 11 in W x 4.1 in H
- Current design
- Aluminum bus material
- Single-phase
- Used with type BR 1 in breakers
- Ground bar kits priced separately
- For 2/4 circuit load centers, use GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit load centers
- Suitable for use as service equipment when not more than six service disconnecting mains are provided
- Insulated/bondable split neutral type
- 1 in maximum space
- Cover not included
| Wire Size | 14 to 1/0 AWG |
|---|---|
| Type | 1-Phase |
| Wiring Configuration | 3-Wire |
| Enclosure Type | NEMA 1 |
| Number of Circuits | 8 |
| Number of Poles | 8 |
| Breaker Type | BR |
| Mounting Type | Surface |
| Enclosure Box Size | NEMA 7 |
| Dimensions | 3.56 in L x 11 in W x 4.1 in H |
| Interrupt Rating | 10 kA |
| Amperage Rating | 125 A |
| Housing Material | Metal |
| Voltage Rating | 120/240 VAC |
| Number of Spaces | 4 |
| Brand | Eaton |
