Webstone H-58613
3/4"SWT PURGE & FILL
SKU
898681

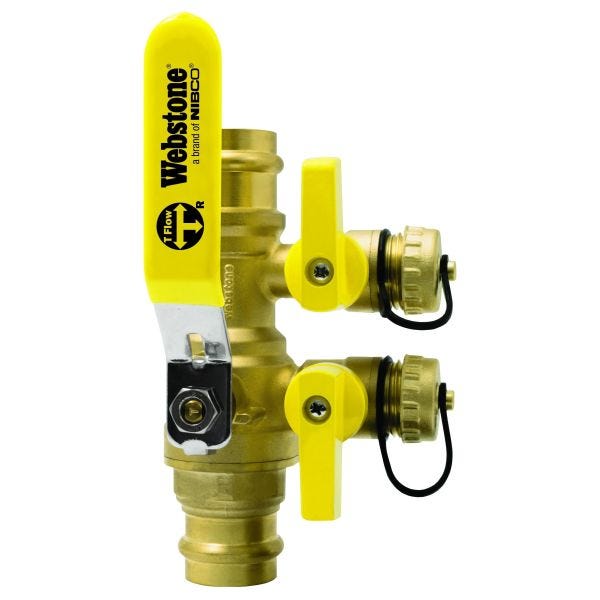

Webstone Pro-Pal® Purge & Fill™ Ball Valve, Series: 5861, 3/4 in Nominal, C End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 4-5/16 in Inlet to Outlet Length, 2-1/8 in Top to Inlet Center, Forged Brass Body, Bass/PTFE Trim, PTFE Softgoods, Import
- Simultaneously drain, flush and refill any hydronic, solar or closed loop system
- Reversible handle for added versatility
- Specifically designed for filling and draining glycol/anti-freeze from any point in a hydronic system
- Saves 54 m
- Replace seven component
- Eliminate six leak path
- This valve is actuated by a blow-out proof stem
- Brass stem
- PTFE seal/seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Adjustable Packing Gland
| Pressure Rating | 600 psi CWP |
|---|---|
| Media | Glycol Mixture/Oil/Water |
| Series | 5861 |
| End Style | C |
| Trim Material | Bass/PTFE |
| Body Material | Forged Brass |
| Color | Brass |
| Port Type | Full |
| Actuator Type | Reversible Handle |
| Temperature Rating | 100 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 4-5/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-1/8 in |
| Softgoods Material | PTFE |
| Brand | Webstone |
