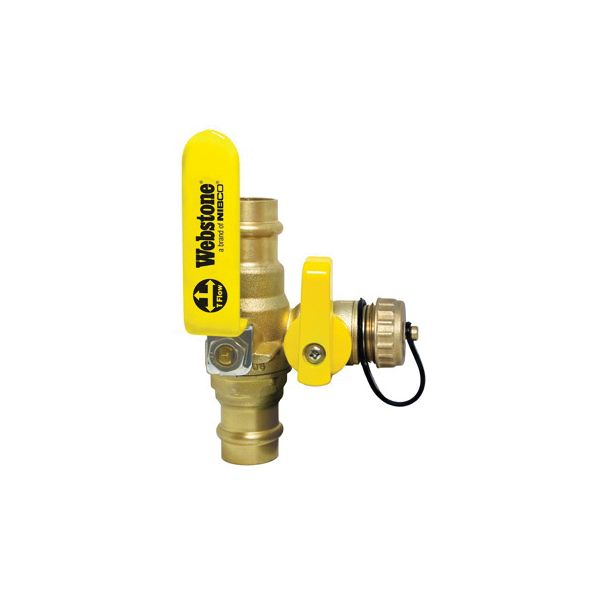

Webstone 80613
3/4" PRESS BALL DRAIN
SKU
789152
Webstone Pro-Connect Press™ Clean Brass™ Ball Drain™, 80613, Ball Valve, Standard, Series: Pro-Pal® 8061, 3/4 in Nominal, Press End Style, 600 psi CWP Pressure, 250 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1/2 in Orifice, Lever Handle Actuator, 4.44 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Forged Brass Body, EPDM/PTFE Softgoods, Import
- Reversible handle for added versatility
- Press connections compatible with popular press tools
- Winterize an entire building with simple quarter-turn actions
- EPDM washer
- Blow-out proof stem
- Full port forged brass ball valve
- Replaces 4 components, eliminates 3 leak paths, saves 27 min of labor
- Brass stem
- Exclusive adjustable flow path allows for draining from either side of the ball
- PTFE seat/stem seal
- Eliminate three leak path
- Eliminate assemblies needed to isolate and drain any portion of a piped system
- PTFE packing stem and EPDM O-ring
- With hi-flow hose drain
- Replace four component
| Pressure Rating | 600 psi CWP |
|---|---|
| Media | Glycol Mixture/Oil/Water |
| Series | Pro-Pal® 8061 |
| End Style | Press |
| Trim Material | Brass/PTFE |
| Body Material | Forged Brass |
| Ball Material | HCP Brass |
| Color | Brass |
| Orifice Size | 1/2 in |
| Port Type | Full |
| Type | Standard |
| Actuator Type | Lever Handle |
| Temperature Rating | 250 deg F |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 4.44 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2.13 in |
| Softgoods Material | EPDM/PTFE |
| Brand | Webstone |
