BURNDY KS26
SERVIT 2 STR-2/0 STR CU
SKU
706268

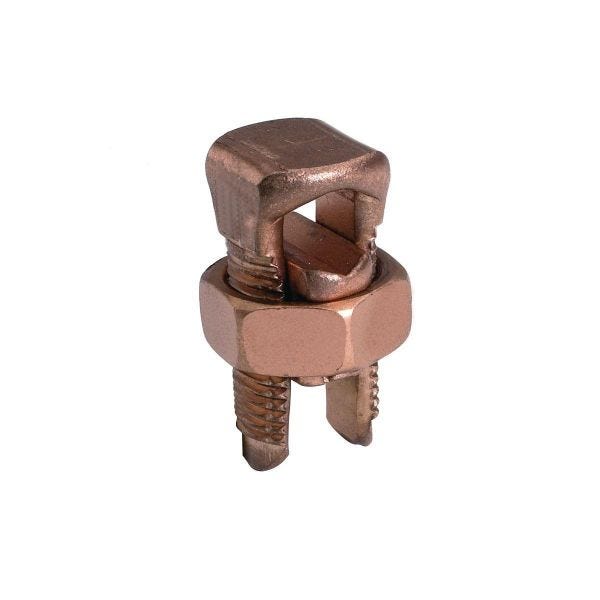

BURNDY® SERVIT® Split Bolt Connector, Compact, Series: KS Series, 1 Conductor, 7 to 3/0 AWG, 14 to 3/0 AWG Conductor, 1.94 in Length, 0.82 in Width, 385 in-lb Torque, Copper Alloy, Plain Copper Plated
- UL 467 listed for direct burial applications in earth or concrete
- Compact, high strength, high copper alloy SERVIT® split-bolt has free-running threads and easy to grip wrench flats
- Highly resistant to cracking and corrosion
- Conductor type - run and tap - solid CopperWeld commercial stranded and solid copper, stranded CopperWeld
- 1.05 in across flats
- 14 to 2/0 AWG of copper tap range, 3/0 AWG of CopperWeld solid run size (range), 2 to 2/0 AWG copper stranded run (range), 7 AWG CopperWeld stranded tap size (range), 14 to 2/0 AWG copper solid tap (range), 3/0 AWG CopperWeld solid tap size (range), 2 to 2/0 AWG copper solid run size (range), 7 AWG CopperWeld stranded run size (range)
- High conductivity copper alloy
- 7 to 3/0 AWG main/primary, 14 to 3/0 AWG tap/secondary
| Torque Rating | 385 in-lb |
|---|---|
| Number of Conductors | 1 |
| Conductor Size | 7 to 3/0 AWG, 14 to 3/0 AWG |
| Length | 1.94 in |
| Suitable For Use With | Copper Conductor |
| Series | KS Series |
| Material | Copper Alloy |
| Type | Compact |
| Finish | Plain Copper Plated |
| Width | 0.82 in |
| Brand | Burndy LLC |
