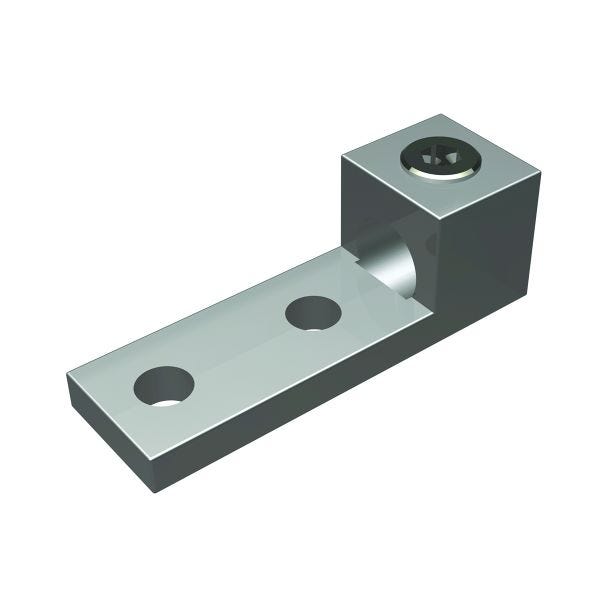

BURNDY® Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: KA-U, Copper/Stranded Aluminum Conductor, 2 AWG to 600 kcmil Conductor, 1/2 in Stud, 2 Bolt Holes, 1.52 in W x 0.44 in THK Tongue, Straight Tongue, Specifications: 1.57 in H x 1.47 in Collar, (1) Hex Screw, 1-3/4 in Mounting Hole Spacing, 1-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 4.69 in L x 1.5 in W Dimensions
- Dual rated one conductor lugs are constructed from high strength aluminum alloy and electro tin plated to provide low contact resistance
- (2) 1/2 in studs
- NEMA standard stud holes
- 1 - 4/0 AWG solid copper
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 4.69 in L x 1.5 in W |
| Specifications | 1.57 in H x 1.47 in Collar, (1) Hex Screw, 1-3/4 in Mounting Hole Spacing, 1-Conductor |
| Conductor Size | 2 AWG to 600 kcmil |
| Stud Size | 1/2 in |
| Conductor Type | Copper/Stranded Aluminum |
| Series | KA-U |
| Tongue Size | 1.52 in W x 0.44 in THK |
| Tongue Type | Straight |
| Material | Aluminum |
| Number of Bolt Holes | 2 |
| Type | Dual Rated Universal |
| Finish | Electro-Zinc Plated |
| Brand | Burndy LLC |
