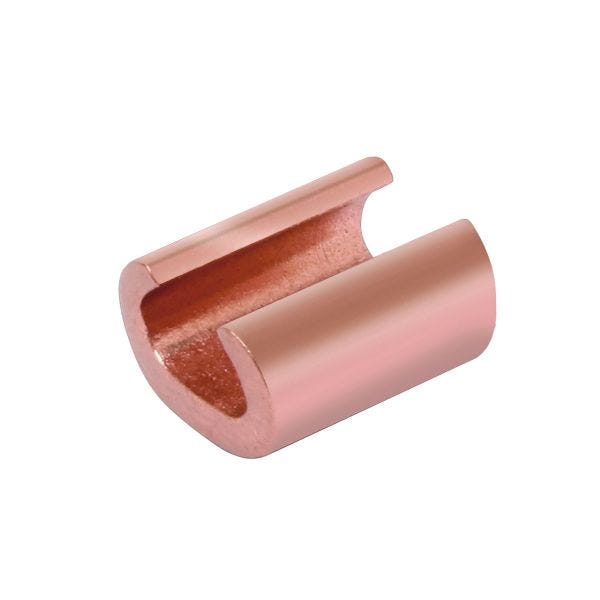

BURNDY® CRIMPIT™ Compression C-Tap Connector, Type YC-C, C, 14 to 8 AWG Main/Run Size, 2 AWG Tap, 600 to 35000 VAC, Commercial Stranded Copper Conductor, Specifications: C Element A Die Index, 90 deg C, Copper, Plain Copper Plated, 3/4 in L
- Range-taking connector - lowers inventory requirements
- Compact size - easy to tape and insulate connection
- Manufactured from high conductivity wrought copper provides low resistance and excellent electrical conductivity
- Economical provides low installed cost
- 2 AWG solid, 2 AWG stranded conductor run
- 2 AWG tap
- For Y35, Y750, Y45, Y46 tool, U-C die, MD6 tool and W-C die
| Temperature Rating | 90 deg C |
|---|---|
| Main/Run Size | 14 to 8 AWG |
| Dimensions | 3/4 in L |
| Tap Size | 2 AWG |
| Specifications | C Element A Die Index |
| Shape | C |
| Voltage Rating | 600 to 35000 VAC |
| Conductor Type | Commercial Stranded Copper |
| Material | Copper |
| Type | Type YC-C |
| Finish | Plain Copper Plated |
| Brand | Burndy LLC |
| Taps | C Tap |
