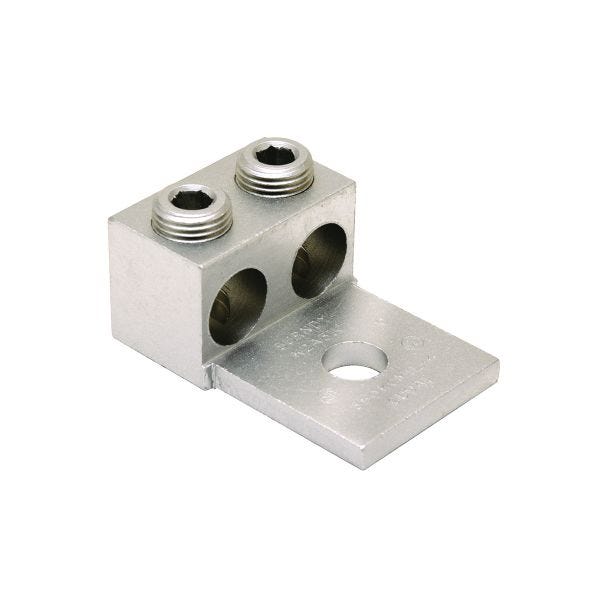

BURNDY K2A40U
TWO:300-800 DUAL RATED
SKU
805864
BURNDY® Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K2A-U, Copper/Stranded Aluminum Conductor, 300 to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Hole, 3.2 in W x 0.5 in THK Tongue, Straight Tongue, Specifications: 1.94 in H x 3.19 in W Collar, (2) Allen Screw, 375 in-lb Installation Torque, 2-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 3.38 in L x 1.94 in H Dimensions
- Dual rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin plated to provide low contact resistance
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 3.38 in L x 1.94 in H |
| Specifications | 1.94 in H x 3.19 in W Collar, (2) Allen Screw, 375 in-lb Installation Torque, 2-Conductor |
| Conductor Size | 300 to 800 kcmil |
| Stud Size | 5/8 in |
| Conductor Type | Copper/Stranded Aluminum |
| Series | K2A-U |
| Tongue Size | 3.2 in W x 0.5 in THK |
| Tongue Type | Straight |
| Material | Aluminum |
| Number of Bolt Holes | 1 |
| Type | Dual Rated Universal |
| Finish | Electro-Zinc Plated |
| Brand | Burndy LLC |
