BURNDY K11A30U
TWO:6 STR-300 DUAL RATED
SKU
805850

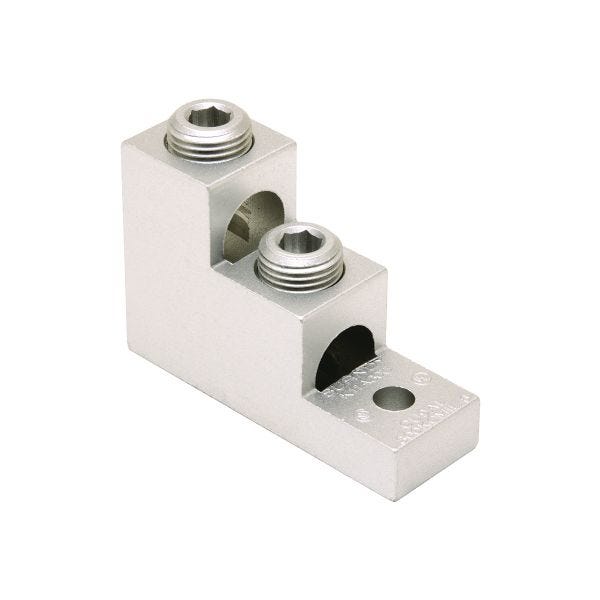

BURNDY® Mechanical Bolted Lug and Terminal, Dual Rated Universal, Series: K11A-U, Aluminum/Stranded Copper Conductor, 6 AWG to 300 kcmil Conductor, 5/16 in Stud, 2 Bolt Holes, 1 in W x 1/2 in THK Tongue, Straight Tongue, Specifications: (2) Hex Screw, 275 in-lb Installation Torque, 2-Conductor, 194 deg F, Aluminum, Electro-Zinc Plated, 3 in L x 2.03 in H Dimensions
- Dual rated panelboard lugs are constructed from high strength extruded aluminum alloy and electro tin plated to provide low contact resistance
- (2) 5/16 in studs
- 4 to 4/0 AWG solid copper
| Temperature Rating | 194 deg F |
|---|---|
| Dimensions | 3 in L x 2.03 in H |
| Specifications | (2) Hex Screw, 275 in-lb Installation Torque, 2-Conductor |
| Conductor Size | 6 AWG to 300 kcmil |
| Stud Size | 5/16 in |
| Conductor Type | Aluminum/Stranded Copper |
| Series | K11A-U |
| Tongue Size | 1 in W x 1/2 in THK |
| Tongue Type | Straight |
| Material | Aluminum |
| Number of Bolt Holes | 2 |
| Type | Dual Rated Universal |
| Finish | Electro-Zinc Plated |
| Brand | Burndy LLC |
