LEGEND 101-514
3/4" SWT FP 600# BV W/DRAIN
SKU
621880

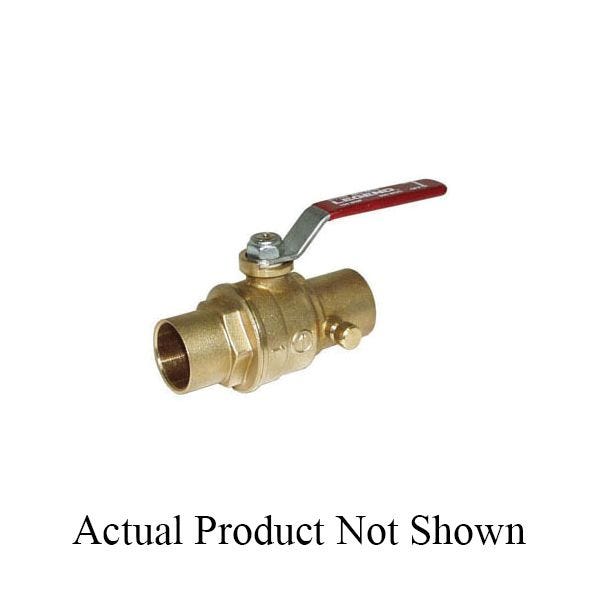

LEGEND Ball Valve, Lead Free, Series: S-1100, 3/4 in Nominal, C, 500 psi CWP, Full Port, 316 Stainless Steel Ball, 3.15 in Inlet to Outlet Length, 1.87 in Top to Inlet Center, Forged Brass Body, Polished Chrome Forged Brass Stem and TFM PTFE Seat Trim, Import
- Durable forged brass body
- Bottom loaded Blow-out proof stem
- Dual O-Ring stem seal
- 3M Dyneon TFM PTFE seats
- Allows line to be drained for maintenance or to prevent freeze-up
- Not suitable for steam service
| Port Type | Full |
|---|---|
| End Style | C |
| Ball Material | 316 Stainless Steel |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.15 in |
| Top to Inlet Center | 1.87 in |
| Pressure Rating | 500 psi CWP |
| Body Material | Forged Brass |
| Nominal Size | 3/4 in |
| Series | S-1100 |
| Trim Material | Polished Chrome Forged Brass Stem and TFM PTFE Seat |
| Brand | Legend |
