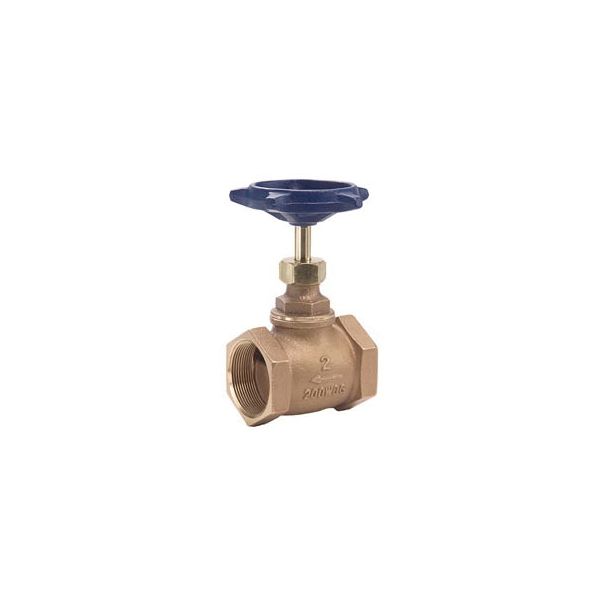

LEGEND 103-108NL
2" IPS GLOBE VALVE
SKU
882139
LEGEND Bronze Globe Valve, Series: T-421NL, 2 in Nominal, FNPT End Style, 200 psi Pressure, 350 deg F, 26 gpm Flow Rate, Full Port, Media: Oil/Steam/Water, Handwheel Actuator, 3.94 in Inlet to Outlet Length, 5.95 in L Open x 5.32 in L Close Top to Inlet Center, Bronze Body, Forged Brass Trim, PTFE Seat, Packing Softgoods, 3.94 in Diameter Hand Wheel, Import
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
- Full-pattern globe-shaped body promotes good flow characteristics, minimal pressure drop and durability
- Large diameter tapered bronze disc and venturi-tapered port, permit precise throttling control
- Articulated stem and tapered disc connection, prolong seat life by eliminating friction at the metal-to-metal closure
- Allowing the disc and stem to move independently of one another, enables the disc to seat and seal without twisting and abrading
- Durable inserted bonnet and oversized stem packing are commercial grade
- Rising stem design provides a quick visual reference of the disc position
- Designed for water or steam, where precise flow control is required
- Lead free forged brass disc and disc nut, forged brass packing nut, cast iron handwheel aluminum identification disc steel handwheel nut, forged brass gland follower
- Cast bronze body
| Softgoods Material | PTFE Seat, Packing |
|---|---|
| Flow Rate | 26 gpm |
| Port Type | Full |
| End Style | FNPT |
| Hand Wheel Diameter | 3.94 in |
| Media | Oil/Steam/Water |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.94 in |
| Top to Inlet Center | 5.95 in L Open x 5.32 in L Close |
| Pressure Rating | 200 psi |
| Body Material | Bronze |
| Nominal Size | 2 in |
| Temperature Rating | 350 deg F |
| Series | T-421NL |
| Actuator Type | Handwheel |
| Trim Material | Forged Brass |
| Brand | Legend |
