LittleGIANT 554530
VCMX-20ULS LG NEXGEN 20'
SKU
412164

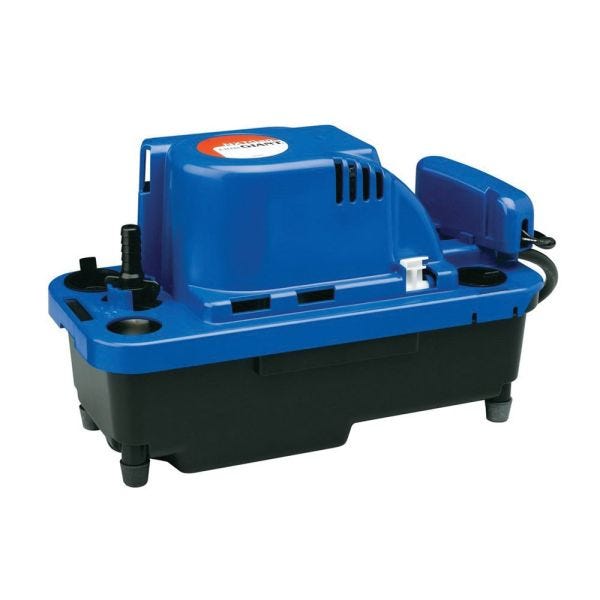

Little Giant® NXTGen™ Condensate Removal Pump, Automatic, Series: VCMX-20, 84 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 21 ft Shutoff Head, 93 W, 1.5 A 115 VAC 60 Hz 1/30 hp, 9.1 psi Maximum, Wall Mount, 140 deg F, ABS, 10.2 in L x 4.8 in W x 6.5 in H
- External test/run lever
- Slim footprint
- Vertical centrifugal pump design
- For models with safety overflow switch - dual function NO and NC operation (set to NO from factory for equipment shut down connection)
- Models equipped with safety overflow switch include two 5 in switch lead wires
- 3/8 in OD barbed 1/4-turn quick release, locking discharge adapter with built-in check valve
- Rubber feet for vibration/noise dampening
- Anti-sweat tank sleeve included on select models and available separately for all others
- (3) 1-1/8 in Dia inlet openings, two fitted with removable cap plug (3 + 1 inlet openings for models without safety overflow switch)
- Recessed tank sump
- Oil resistant tank and check valve
- Thermally protected, fan cooled motor
- 6 ft, 3-conductor cable with grounded 3-prong plug
- ABS volute, polypropylene tank, impeller, ABS switch float, motor cover, acetal check valve
| Dimensions | 10.2 in L x 4.8 in W x 6.5 in H |
|---|---|
| Type | Automatic |
| Power Rating | 93 W |
| Maximum Pressure | 9.1 psi |
| Flow Rate | 84 gph |
| Shutoff Head | 21 ft |
| Series | VCMX-20 |
| Inlet Size | 1-1/8 in |
| Mounting Type | Wall |
| Temperature Rating | 140 deg F |
| Electrical Ratings | 1.5 A 115 VAC 60 Hz 1/30 hp |
| Material | ABS |
| Outlet Size | 3/8 in OD Barbed |
| Brand | Little Giant |
