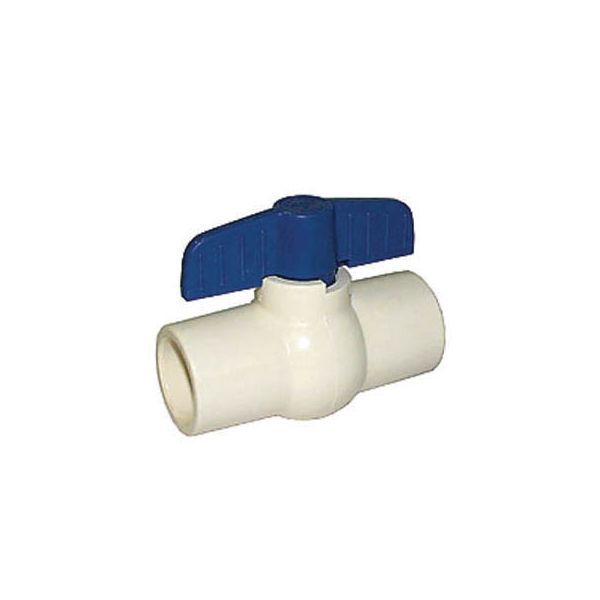

LEGEND 202-406
1 1/4" CPVC BALL VALVE
SKU
637553
LEGEND Miniature Ball Valve, Compact, Series: S-605, 1-1/4 in Nominal, Solvent, 150 psi, 180 deg F, Full Port, Media: Oil/Water, T-Handle Actuator, CPVC Ball, 4.19 in Inlet to Outlet Length, CPVC Body, CPVC Stem and Dupont PTFE Seat Trim, EPDM, Bone, 3.68 in H, Import
- Large ports allow maximum flow and minimum pressure drop or turbulence
- Ball valves are constructed of ASTM D1784 virgin CPVC resin
- Severe shock loads and stress are absorbed by the valve body, not the ball and seats thereby minimizing the chance of uneven wear and leakage
- Compact-pattern molded-in-place body design
- Low torque, durable PTFE seats and in-line, one way flow style
- EPDM seal
| Softgoods Material | EPDM |
|---|---|
| Dimensions | 3.68 in H |
| Port Type | Full |
| End Style | Solvent |
| Media | Oil/Water |
| Ball Material | CPVC |
| Domestic/Import | Import |
| Inlet to Outlet Length | 4.19 in |
| Type | Compact |
| Pressure Rating | 150 psi |
| Body Material | CPVC |
| Nominal Size | 1-1/4 in |
| Temperature Rating | 180 deg F |
| Color | Bone |
| Series | S-605 |
| Actuator Type | T-Handle |
| Trim Material | CPVC Stem and Dupont PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 1 1/4" |
