Sloan 3771625
152-1.28 DFB ESS TMO SWB FV
SKU
759935

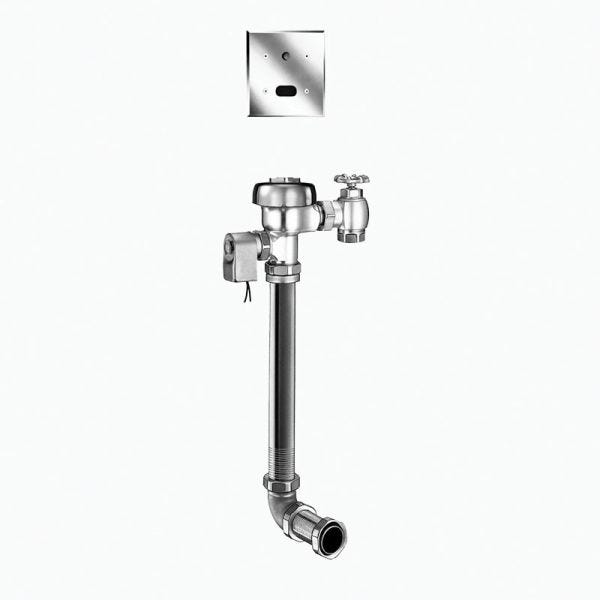

Sloan® Sensor Concealed Flushometer, Single-Flush, Series: 152 ESS, Optima® Collection, Water Closet Fixture, Hardwired Power Source, 1.28 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 24 in Rough-In, Diaphragm Valve Design, Connection Location: Back Spud, 22 to 42 in Sensor, 15 to 80 psi Pressure, Non-Hold Open Handle, Semi-Red Brass, Rough Brass, Domestic
- Water conservation is aided by the ADA Compliant, non-hold-open handle
- Flush accuracy is controlled by CID® technology, also enhancing water efficiency
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece to accommodate different height requirements
- High chloramine resistant Permex® synthetic rubber diaphragm with linear filtered by-pass and Vortex™ cleansing action
- Valve body, cover, tailpiece and control stop shall be in conformance with ASTM alloy classification for semi-red brass
- Concealed, Sensor Activated Sloan® model water closet flushometer for wall hung back spud bowls
| Power Source | Hardwired |
|---|---|
| Flush Rate | 1.28 gpf |
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Collection | Optima® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Sensor Range | 22 to 42 in |
| Connection Location | Back Spud |
| Series | 152 ESS |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 24 in |
| Fixture Type | Water Closet |
| Pressure Rating | 15 to 80 psi |
| Finish/Color | Rough Brass |
| Brand | Sloan |
