Webstone H-11413W
3/4" PEX ROTATING FLNG W/DRN
SKU
897255

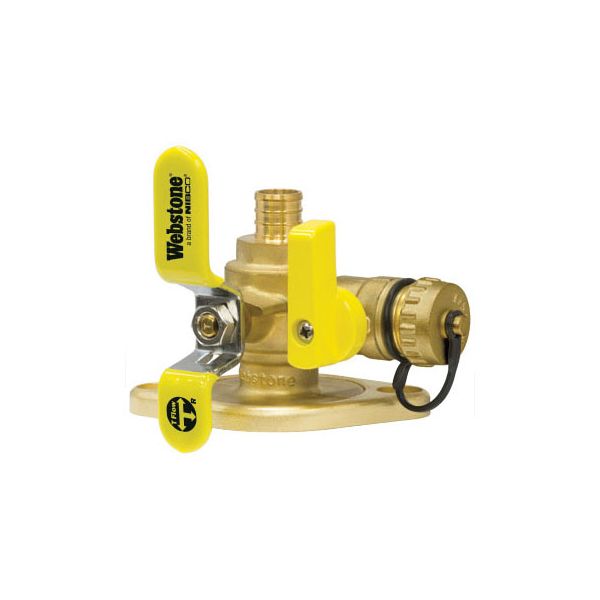

Webstone The Isolator® Ball Valve, Uni-Flange, Series: 1141, 3/4 in Nominal, F1807 PEX x Rotating Flanged, 400 psi, Full Port, Media: Gas/Oil/Water, 3/4 in Orifice, Brass Ball, 3.12 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Brass Body, Brass/PTFE Trim, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Rotating flange is secured by a snug-fit snap-ring that provides greater control over positioning during installation
- Flange features a conical inlet to minimize turbulence
- Multi-function drain makes the isolator the only valve that drains from either side of the pump
- Fits virtually any standard circulator pump
- Saves 63 minutes
- Replaces 8 components
- Eliminates 7 leak paths
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
| Pressure Rating | 400 psi |
|---|---|
| Media | Gas/Oil/Water |
| Series | 1141 |
| End Style | F1807 PEX x Rotating Flanged |
| Trim Material | Brass Stem and PTFE Seat |
| Body Material | Brass |
| Ball Material | Brass |
| Orifice Size | 3/4 in |
| Port Type | Full |
| Type | Uni-Flange |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 3.12 in |
| Domestic/Import | Import |
| Top to Inlet Center | 2-1/4 in |
| Brand | Webstone |
