BURNDY BIPC3504/0
BURNDY PIERCING TAP P350T4/0
SKU
771768

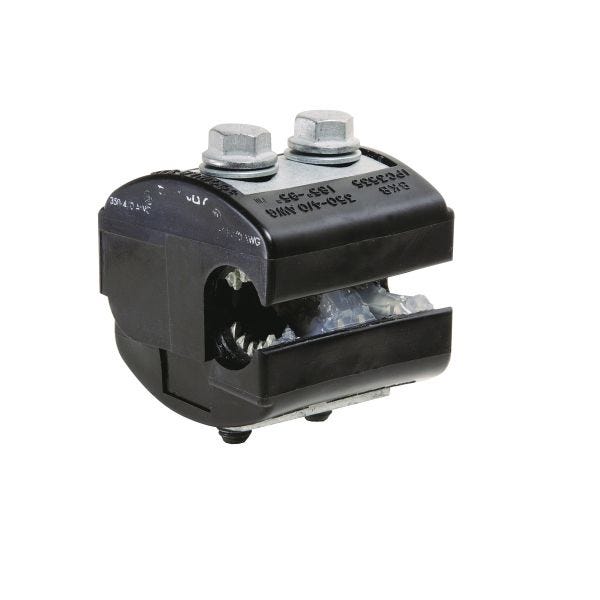

BURNDY® INSULTAP™ Insulation Piercing Connector, Series: BIPC, Aluminum/Copper Conductor, 4/0 AWG to 350 kcmil Conductor, 3/8 in Bolt, 300 VAC, Specifications: 375 in-lb Installation Torque 9/16 in Socket, 90 deg C, Aluminum, TiN Coated, 1.59 in L x 2.5 in W x 3 in H Dimensions
- Insulation piercing capability
- Eliminates the need for conductor insulation stripping
- For copper and aluminum conductor combinations up to 90 deg C 600 V applications
- Insulation piercing design
- Eliminates the need for taping, easy snap-out tabs eliminates the need for taping, easy snap-out tabs
- Easy snap-out tabs eases installation, protects connection from dirt and debris
- Simple bolt-on connection eases installation
- Splice, tap, mechanical hot line tap connection type
- 4/0 AWG to 350 kcmil (main/primary), 10 to 4/0 AWG (tap/secondary) wire
- Protects connection from dirt and debris
- :3/8-16 dia stud/bolt, 375 in-lb installation torque, width:2.5 in, length:1.59 in, height:3 in, 9/16 in socket size
| Temperature Rating | 90 deg C |
|---|---|
| Dimensions | 1.59 in L x 2.5 in W x 3 in H |
| Specifications | 375 in-lb Installation Torque 9/16 in Socket |
| Conductor Size | 4/0 AWG to 350 kcmil |
| Voltage Rating | 300 VAC |
| Bolt Size | 3/8 in |
| Conductor Type | Aluminum/Copper |
| Series | BIPC |
| Material | Aluminum |
| Finish | TiN Coated |
| Brand | Burndy LLC |
