BURNDY YC27L12
BURNDY COP COMP C TAP
SKU
768353

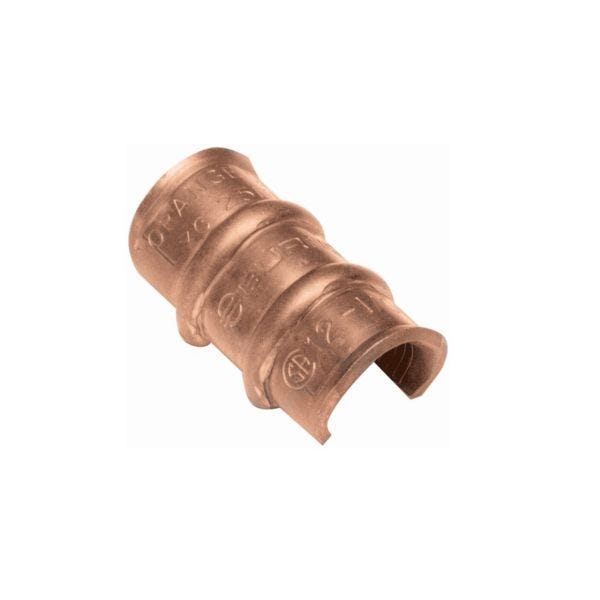

BURNDY® CRIMPIT™ Compression C-Tap Connector, Type YC-L Thinwall, Figure C, 1/0 AWG Main/Run, 12 to 1/0 AWG Tap, 600 VAC, Stranded Copper Conductor, 16 Element A Die Code, 2 Ribs, 1-13/16 in L Wire Strip, 194 deg F, Copper, Bright Tin Coated, 1.75 in L x 0.9 in THK
- Manufactured form high conductivity wrought copper provides low resistance and excellent electrical conductivity
- Range-taking connector - lowers inventory requirements
- Reinforced ribs - provides maximum pull-out values
- Compact size - easy to tape and insulate connection
- Economical - provides low installed cost economical
- Use puadp-1 adapter with U dies in Y46 hypress
- 2/0, 3/0, 1/0 AWG conductor run
- For mechanical MD6, OUR840, MD7-34R, Y2MR tool and W29VT die
| Temperature Rating | 194 deg F |
|---|---|
| Main/Run Size | 1/0 AWG |
| Dimensions | 1.75 in L x 0.9 in THK |
| Tap Size | 12 to 1/0 AWG |
| Specifications | 16 Element A Die Code, 2 Ribs, 1-13/16 in L Wire Strip |
| Shape | Figure C |
| Voltage Rating | 600 VAC |
| Conductor Type | Stranded Copper |
| Material | Copper |
| Type | Type YC-L Thinwall |
| Finish | Bright Tin Coated |
| Brand | Burndy LLC |
| Taps | C Tap |
