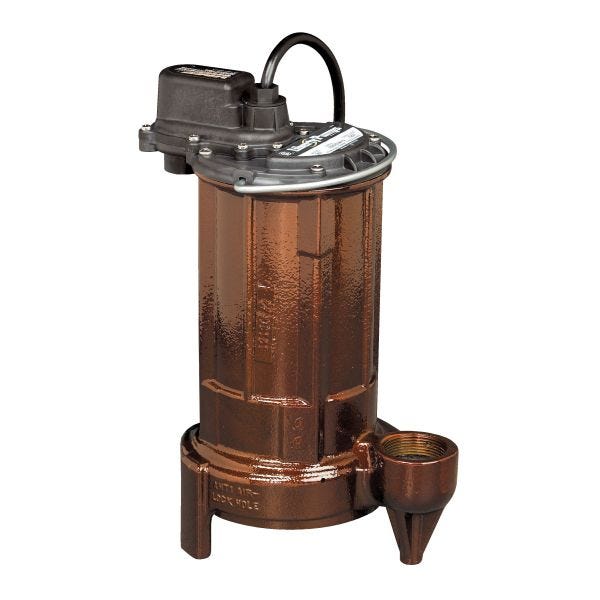

Liberty Pumps 290
3/4HP SUBM SUMP PUMP 115V
SKU
602832
Liberty Pumps®, 290, 77 gpm Flow Rate, 1-1/2 in Outlet, 48 ft Maximum Head, 3/4 hp, 115 VAC, 10.4 A, 60 Hz Frequency, 1 ph, 3450 rpm Motor, SJTW 10 ft Cord, Vortex Impeller, 248 deg F Thermal Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H Dimensions
- Liberty Pumps®'s unique, one-piece unit body casting
- Quick connect power cord
- Permanently lubricated upper and lower bearings
- Oil filled, hermetically sealed motor with thermal overload protection
- Stainless steel, removable bottom screen
- Stainless steel rotor shaft
- Stainless steel fasteners
- Class B stator winding
- 24 A locked rotor
- 3/4 in solid handling
- 140 deg F fluid temperature
- Manual, no switch
Material | Cast Iron |
---|---|
Cord Type | SJTW 10 ft |
Frequency Rating | 60 Hz |
Temperature Rating | 248 deg F Thermal Overload |
Impeller Type | Vortex |
Bearing Type | Ball/Race |
Outlet Size | 1-1/2 in |
Voltage Rating | 115 VAC |
Flow Rate | 77 gpm |
Maximum Head | 48 ft |
Motor Speed | 3450 rpm |
Dimensions | 10 in W x 13 in H |
Phase | 1 ph |
Amperage Rating | 10.4 A |
Horsepower | 3/4 hp |
Brand | Liberty Pumps |
