BURNDY GAR3902

4-4/0, 1/2-1 IPS
SKU
805841
The product cannot be delivered by Truck Shipping

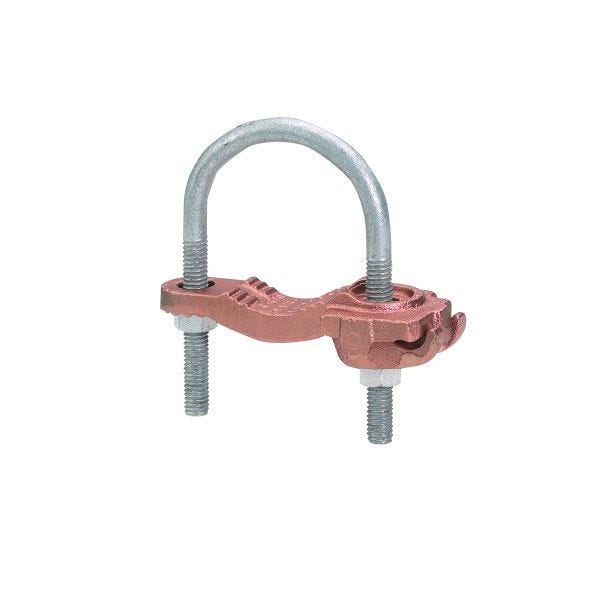

BURNDY® Mechanical Grounding Connector, Series: GAR3902, 1/2 to 1 in Pipe, 1/2 to 1 in Rod, Copper/Stranded Conductor, 4 to 4/0 AWG Conductor, Conductor to Water Pipe, Wrench Installation, Copper, Galvanized, 1-3/4 in L x 3-1/4 in W x 3-1/2 in H

  • High conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes, cable clamp swivels at 90 deg
  • Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes
  • Simplified installation, long lasting corrosion-resistance and acceptable for direct burial in earth or concrete
  • Provides quality assurance to recognized industry National electrical Code® standards from an independent party
  • 200 in-lb installation torque
  • 3-gang/8 in bolt size
  • 4 to 4/0 AWG stranded (main/primary) conductor size
  • Steel hardware
  • Galvanized screw
  • 1/2 to 1 in IPS pipe
  • Made of high conductivity copper
  • 90 deg cable clamp swivels
  • Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete
More Information
Connection Type Conductor to Water Pipe
Dimensions 1-3/4 in L x 3-1/4 in W x 3-1/2 in H
Pipe Size 1/2 to 1 in
Installation Wrench
Conductor Size 4 to 4/0 AWG
Conductor Type Copper/Stranded
Rod Size 1/2 to 1 in
Series GAR3902
Material Copper
Finish Galvanized
Brand Burndy LLC
