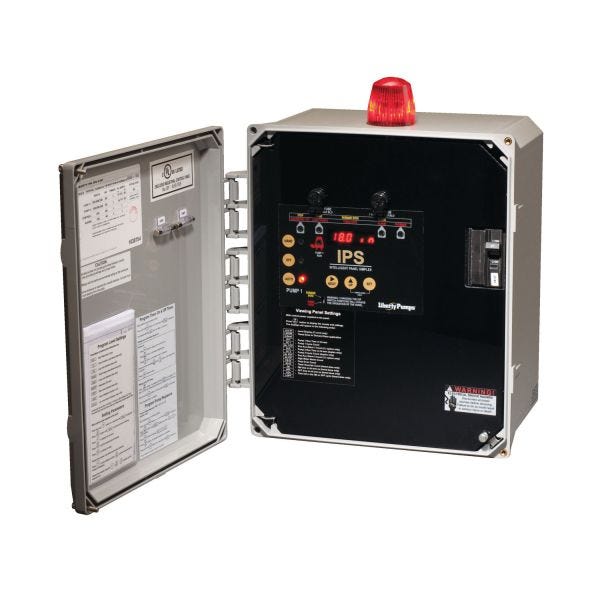

Liberty Pumps IPS-24H
SIMPLEX INT PANEL IPS-24
SKU
877666
Liberty Pumps®, IPS-24H, Series: IP Series, 120/208/240 VAC, 1 ph, 15 to 20 A, Specifications: NEMA 4X Enclosure, 10 in W x 6 in D x 12 in H, 10 ft Vent Tube, For Use With: Model FL152M-2 and FL202M-2 Submersible Effluent Pump
- Intelligent panel series with float less technology
- NEMA 4X weather proof enclosure
- Float-less level sensor is compact
- Redundant alarm float included for added security
- Easy to use touch pad for programming pump on/off levels and alarm level
- Separate control and alarm fuses
- Digital display board for system monitoring
- Auxiliary contacts
- Instruction label on inside cover for viewing and programming digital display
- Panel is field convertible for either demand dose or timed dose applications
- Alarm beacon and horn provide audio/visual warning of alarm condition
- Inner panel door provides increased safety
- Compact design for confined space applications
- Operates on low voltage
- One sensor takes the place of up to four floats
- Easy to install and adjust set points
- Level sensor operating range is 4 to 99 in
- 20 ft cord length from vent
- Stainless steel clamps for mounting
| Voltage Rating | 120/208/240 VAC |
|---|---|
| Series | IP Series |
| Phase | 1 ph |
| Suitable For Use With | Model FL152M-2 and FL202M-2 Submersible Effluent Pump |
| Amperage Rating | 15 to 20 A |
| Specifications | NEMA 4X Enclosure, 10 in W x 6 in D x 12 in H, 10 ft Vent Tube |
| Brand | Liberty Pumps |
