BURNDY AYPO4/0
4/0STR AL OFFSET HYPLUG
SKU
805588

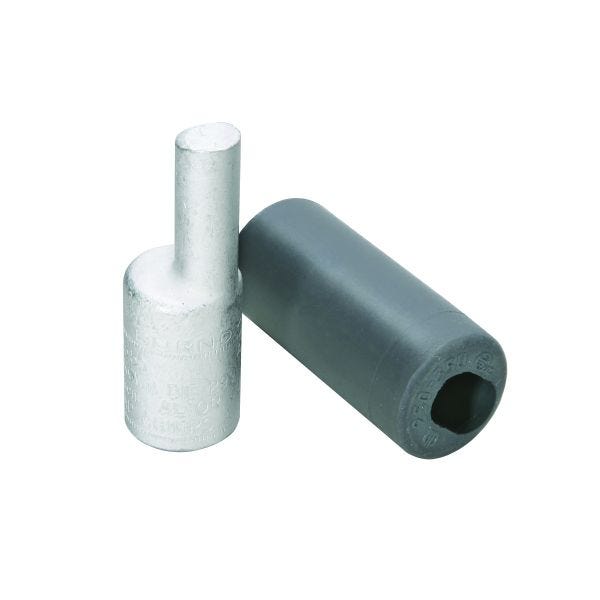

BURNDY® HYPLUG™ Compression Pin Adapter, Type AYPO Offset, 4/0 AWG Conductor, Die Code: 298 Element A, White Color Code, 0.42 in Pin Dia, 1.22 in Pin Length, 1-1/8 in Barrel Length, 600 to 35000 VAC, 2.44 in Cover, 1-1/8 in L Wire Strip, Tin-Electro Plated, 194 deg F, Aluminum, 2.8 in L
- All-aluminum electro tin plated design, eliminates possible bi-metallic corrosion and provides the shortest connector length design possible
- Permits easy installations in equipment with limited working space
- Solid electro-tin plated aluminum plug proper electrical connection made easily
- Eliminates how tight is tight problem
- Smooth surface on the solid EC aluminum electro tin plated plug, provides greater area contact establishing excellent electrical conductivity
- Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire, permits use of larger aluminum wire to connect equipment
- Provides flexibility and maximizes the use of limited space eliminating interference between conductors and equipment
- Factory pre-filled with the proper amount of PENETROX® joint compound
- BURNDY®'s oxide inhibiting compound with conductive metallic particles penetrates aluminum oxide between strands and foRMS an airtight connection
- EPDM rubber covers are supplied with each connector and are rated for 600 VAC, eliminates taping
- Only (5) die sets install the complete line from 6 AWG to 750 kcmil, lowers inventory requirements and saves money
- Supplied in a plastic convenience pack, the cover and connector are kept together and free of foreign material until used
- Connectors are clearly marked with catalog number
- Provides easy to use information to lower installed cost
- For Y35, Y39, Y750 tool, U31ART die, Y46 tool, U31ART die with puadp-1 adapter, HYTOOL™ Y644HS hydraulic dieless tools, Y81KFT, Y81KFTMBH and PAT81KFT-18V tool
- 4/0 AWG stranded
- Commercial stranded aluminum and copper conductor type
Pin Diameter | 0.42 in |
---|---|
Dimensions | 2.8 in L |
Specifications | 2.44 in Cover, 1-1/8 in L Wire Strip, Tin-Electro Plated, 194 deg F |
Conductor Size | 4/0 AWG |
Voltage Rating | 600 to 35000 VAC |
Die Code | 298 Element A |
Material | Aluminum |
Pin Length | 1.22 in |
Color Code | White |
Barrel Length | 1-1/8 in |
Type | Type AYPO Offset |
Color Code | White |
Brand | Burndy LLC |
