BURNDY YA28LBOX
4/0 CU 1-HOLE SHORT 1/2
SKU
806026

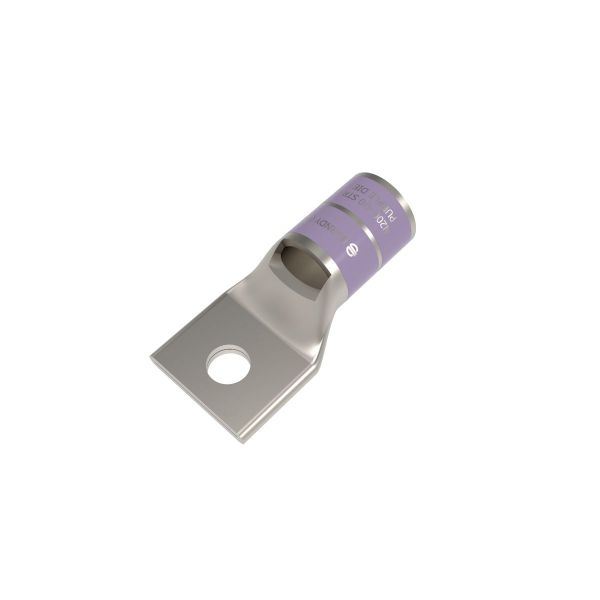

BURNDY® HYLUG™ Compression Lug, 1-Hole, Series: YA-L, Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: 15, 600 VAC to 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.02 in W x 0.14 in THK Tongue, 2.46 in Overall Length, Chamfered/Short/Skived/Standard Barrel, 0.88 in L Barrel, 1-1/8 in L Wire Strip, Tin Plated, 90 deg C, Copper, Purple
- For mechanical - MD6, OUR840, MD7-34R tool, (2) W28VT, W28RT, X28RT die, hydraulic - BCT500HS, Y500CTHS tool, (2) W28VT, W28RT die, (3) X28RT die, Y35, Y39, Y750, PAT750 tool, (1) U28RT die, Y46 tool, (1) U28RT die with PUADP-1 adapter, dieless tools (number of crimps) - (1) Y644HS, MY29-3, MY29-11 tool, (2) Y81KFT, Y81KFTMBH, PAT81KFT-18V, MRC840 installation tool
- 4/0 AWG stranded conductor
- Electro tin plated
| Temperature Rating | 90 deg C |
|---|---|
| Color | Purple |
| Specifications | 1-1/8 in L Wire Strip, Tin Plated |
| Barrel Size | 0.88 in L |
| Conductor Size | 4/0 AWG |
| Stud Size | 1/2 in |
| Voltage Rating | 600 VAC to 35 kV |
| Barrel Type | Chamfered/Short/Skived/Standard |
| Conductor Type | Stranded Copper |
| Die Code | 15 |
| Overall Length | 2.46 in |
| Series | YA-L |
| Tongue Size | 1.02 in W x 0.14 in THK |
| Tongue Type | Standard/Straight |
| Material | Copper |
| Type | 1-Hole |
| Brand | Burndy LLC |
